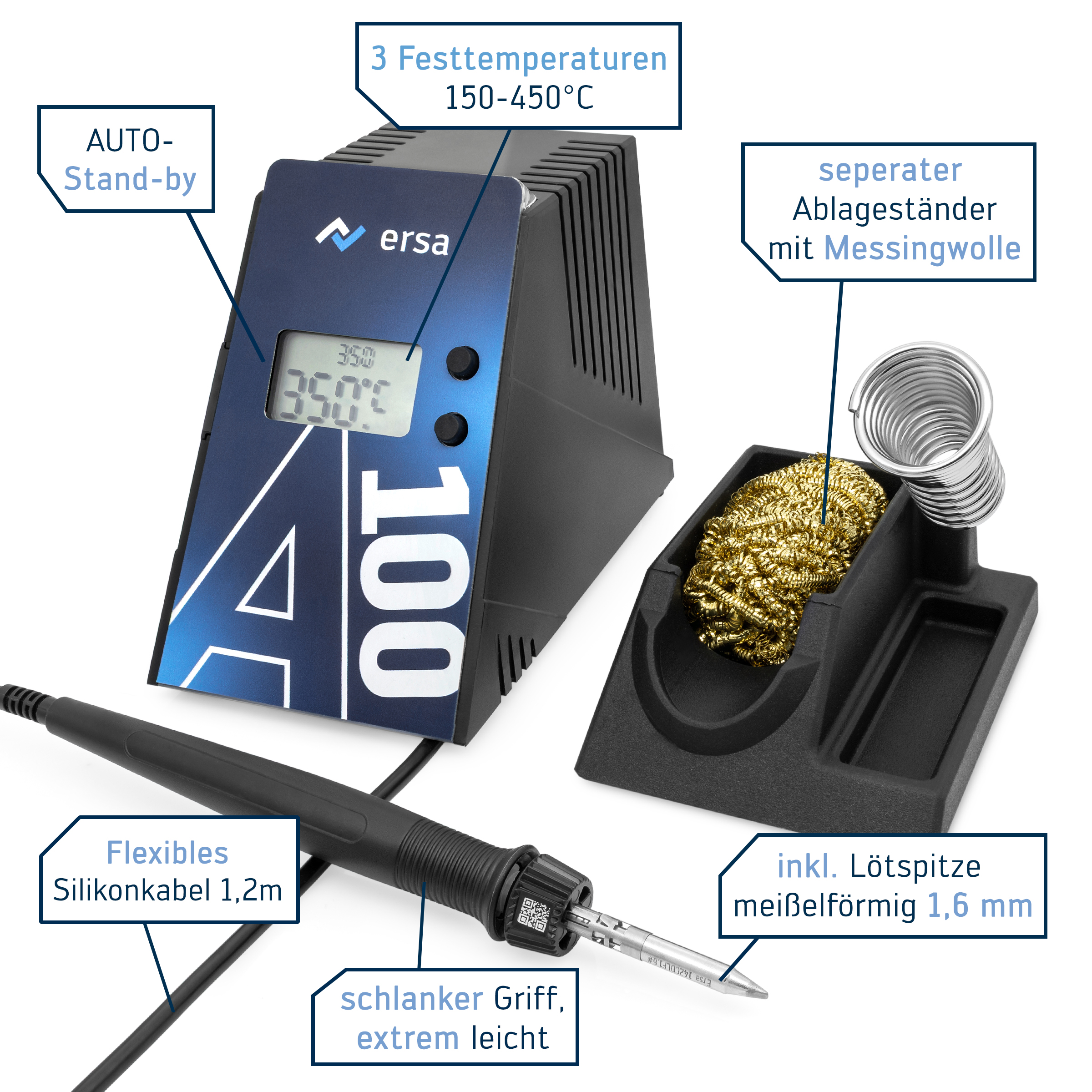

ERSA A100 Soldering Station – 80W, digitally controlled, with i-TOOL A100 & Tip’n’Turn soldering tip

Description

The ERSA A100 is the smart choice for anyone who wants to solder professionally and reliably—from the ambitious tech enthusiast to the workshop with mass-production requirements. As a fully digital soldering station, it not only delivers high performance but also offers customizable settings to meet a wide range of requirements.

With 8 W of heating power and a heat-up time of just 9 seconds to 350°C, it’s ready for use immediately. Three freely selectable fixed temperatures in the range of 150–450°C make switching between tasks particularly fast. The standby function and automatic shutdown help save energy and extend the service life of the soldering tips.

A standout feature is the built-in SD card slot: it allows you to conveniently adjust settings such as lock mode, °C/°F conversion, temperature profiles, or custom power settings. The temperature can also be precisely calibrated—ensuring consistent quality, even under varying conditions.

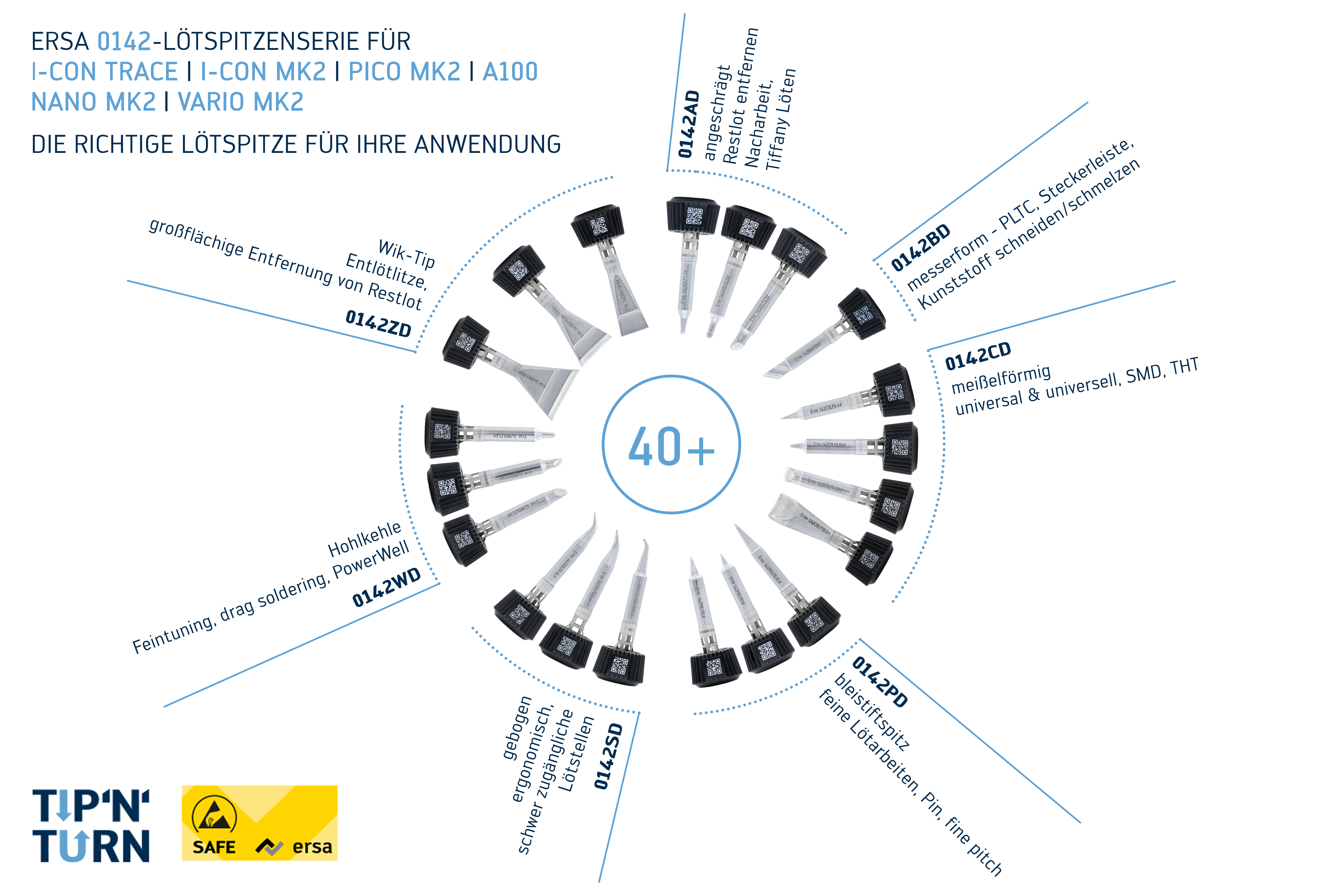

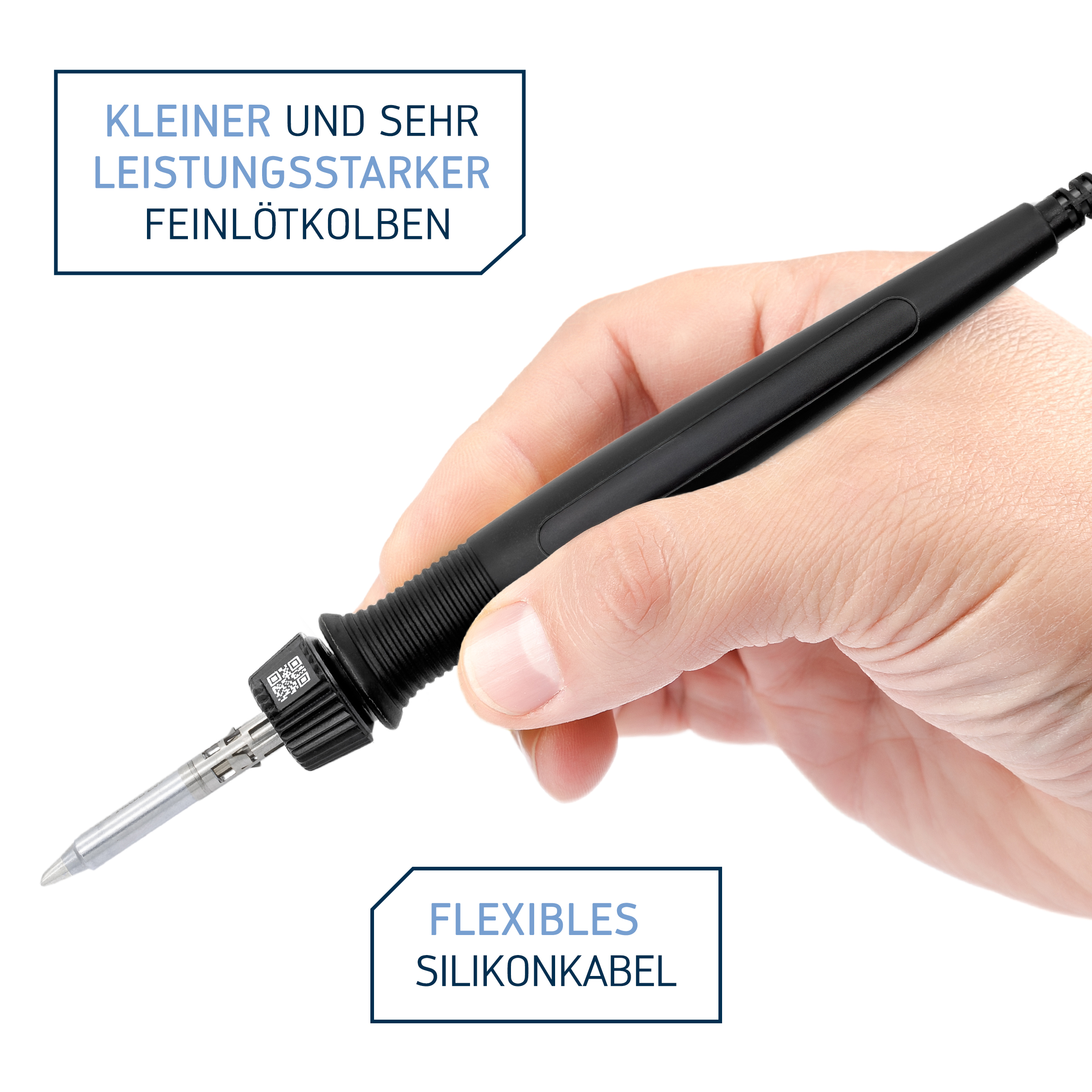

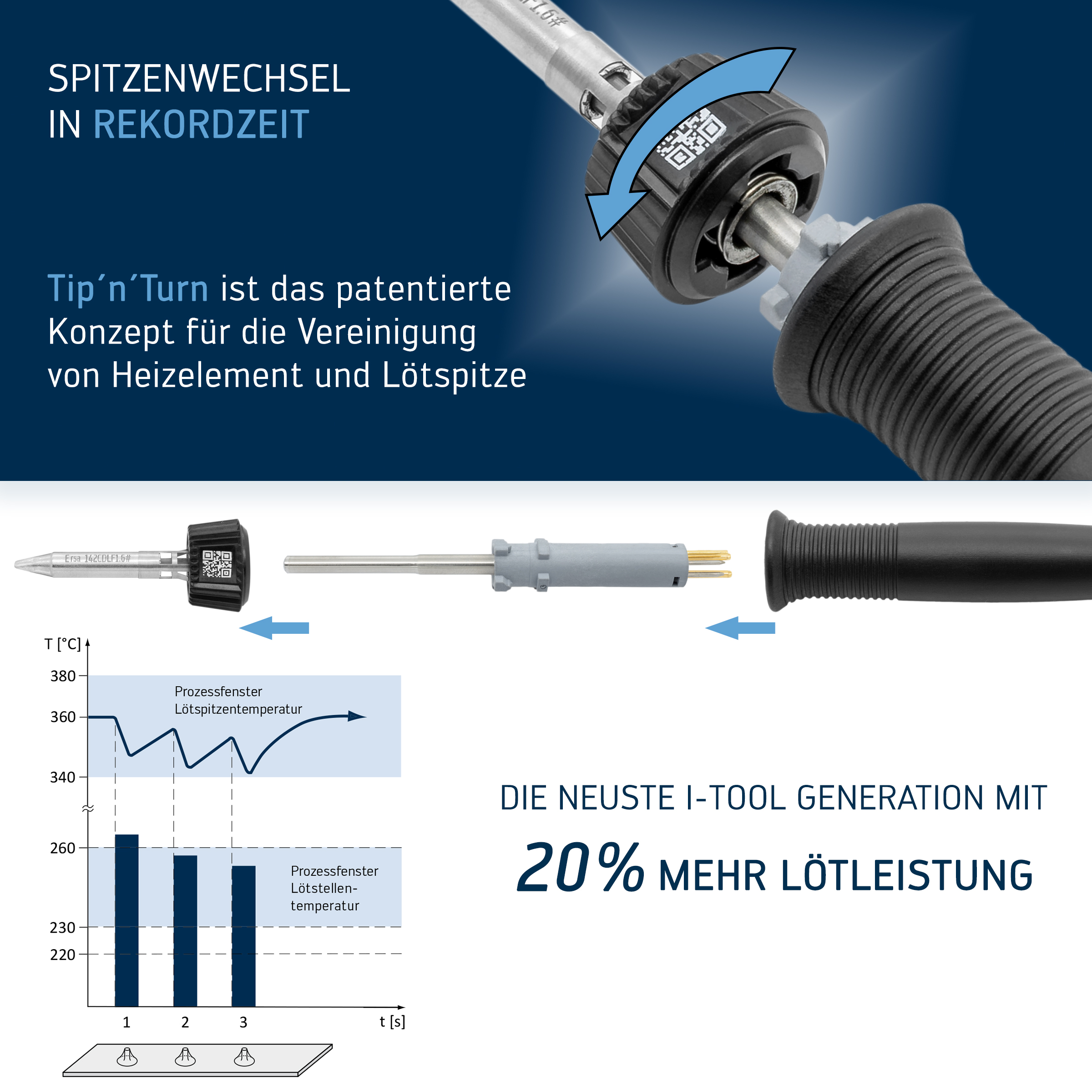

The included i-TOOL A100 soldering iron is ergonomic, extremely lightweight (only 30 g), and connected via a flexible 1.2 m silicone cable. The included Tip’n’Turn soldering tip (chisel-shaped, 1. mm) can be replaced in seconds without tools thanks to its bayonet mechanism—ideal for changing applications.

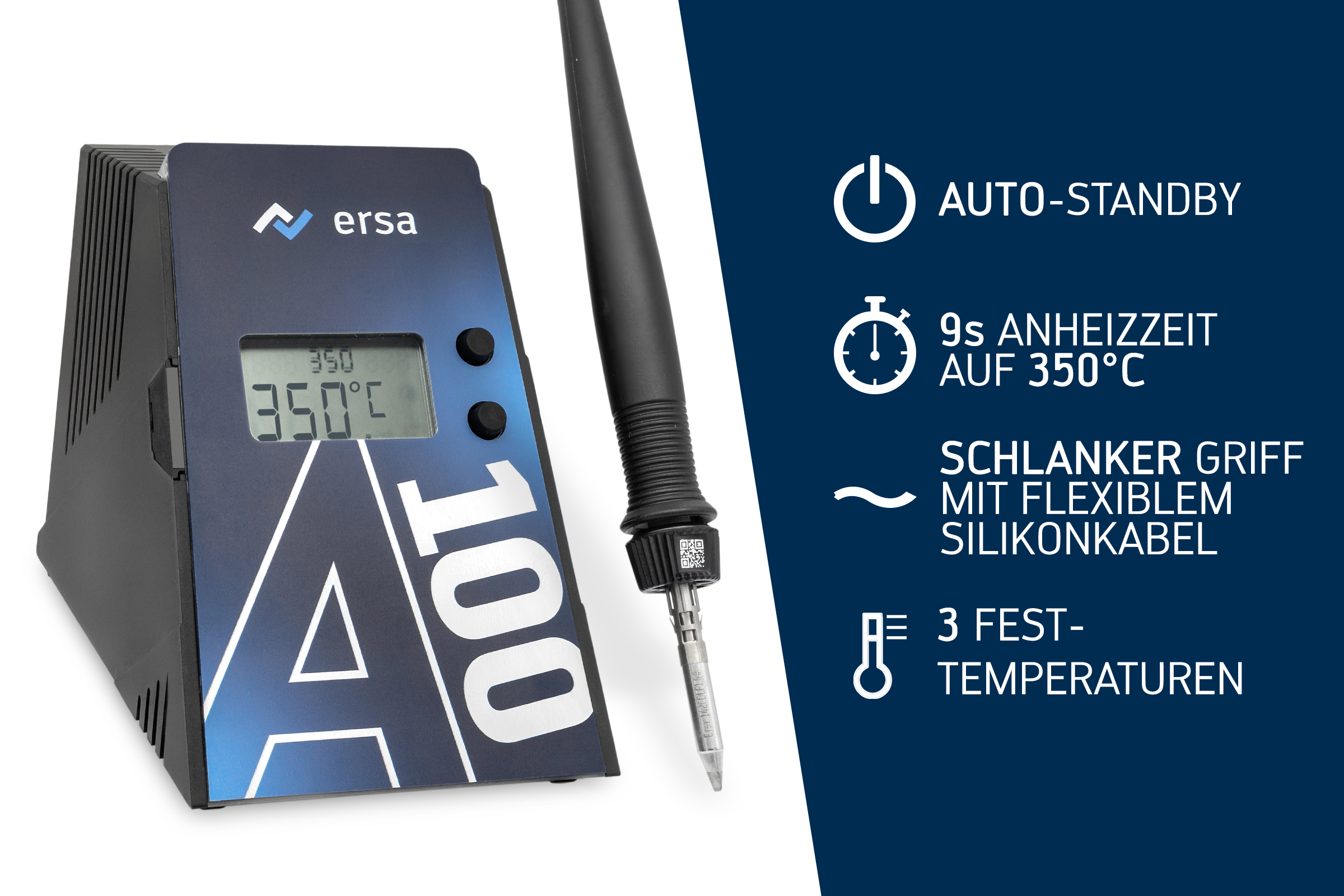

Technical Highlights:
– Power: 80 W, heat-up time: 9 s to 350 °C
– Temperature range: 150–450 °C
– 3 programmable fixed temperatures
– Auto-standby & calibration
– SD card slot for configuration (lock, profiles, display)

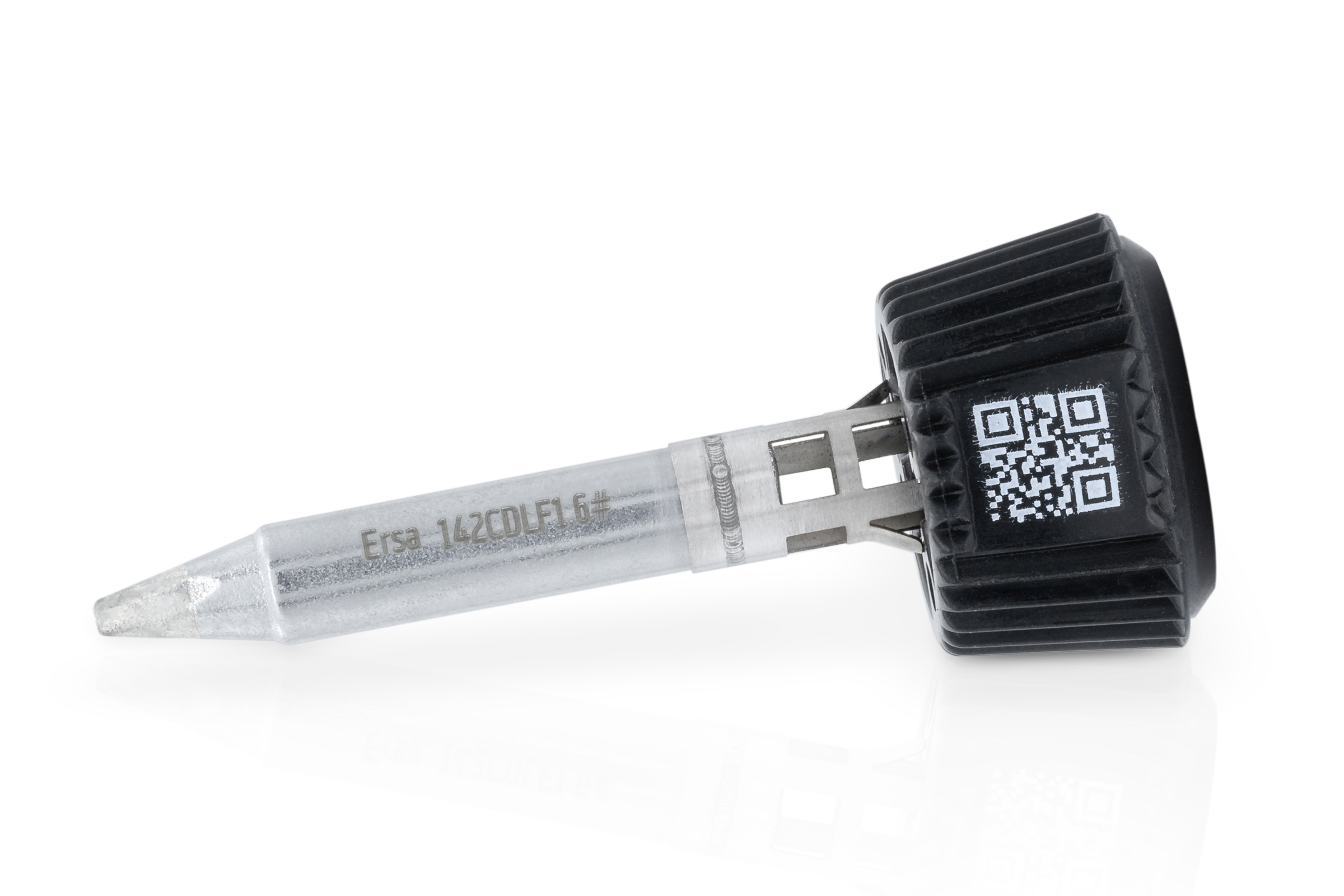

– Soldering tip: Tip’n’Turn, chisel-shaped, 1.6 mm

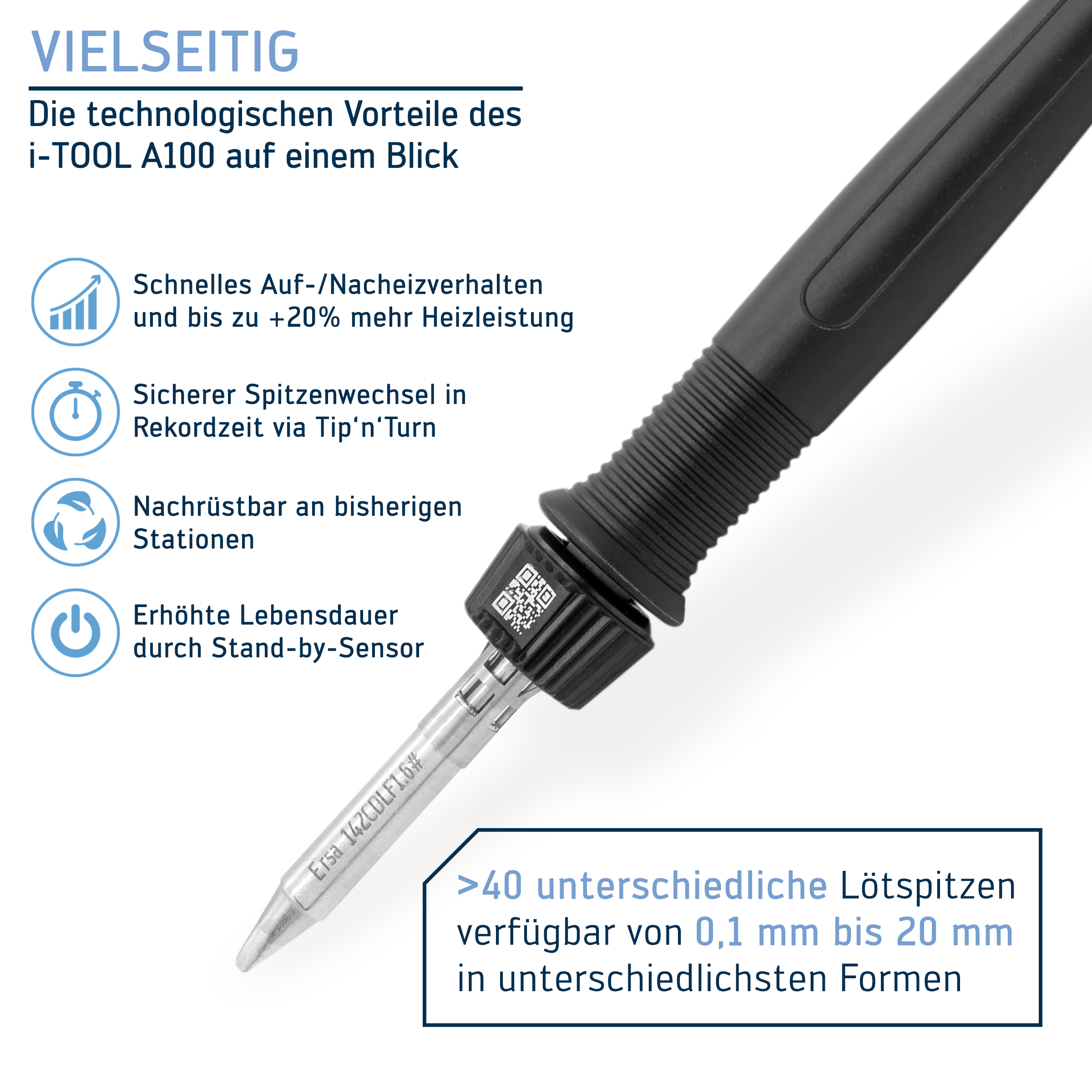

– Soldering iron: i-TOOL A100, 30 g weight

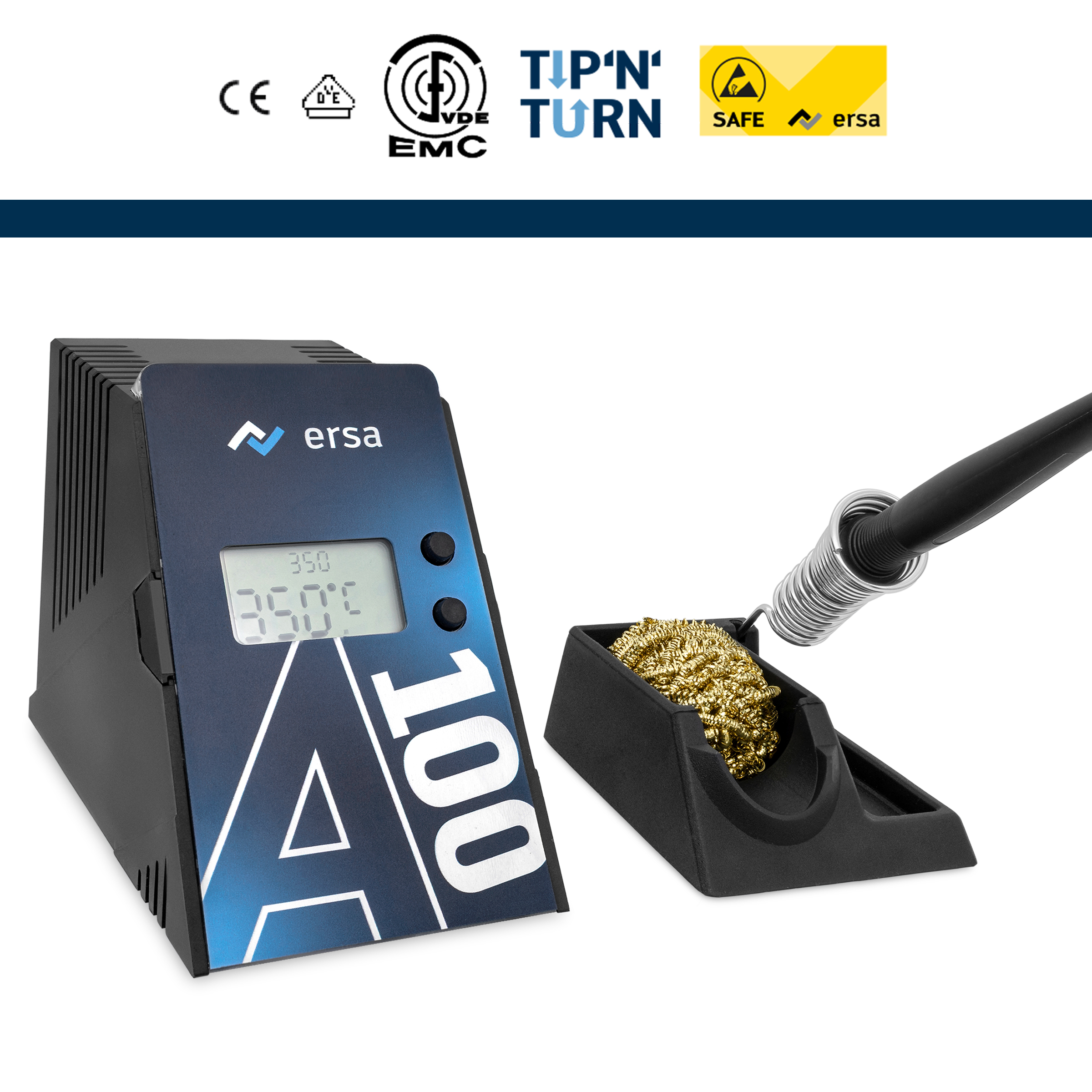

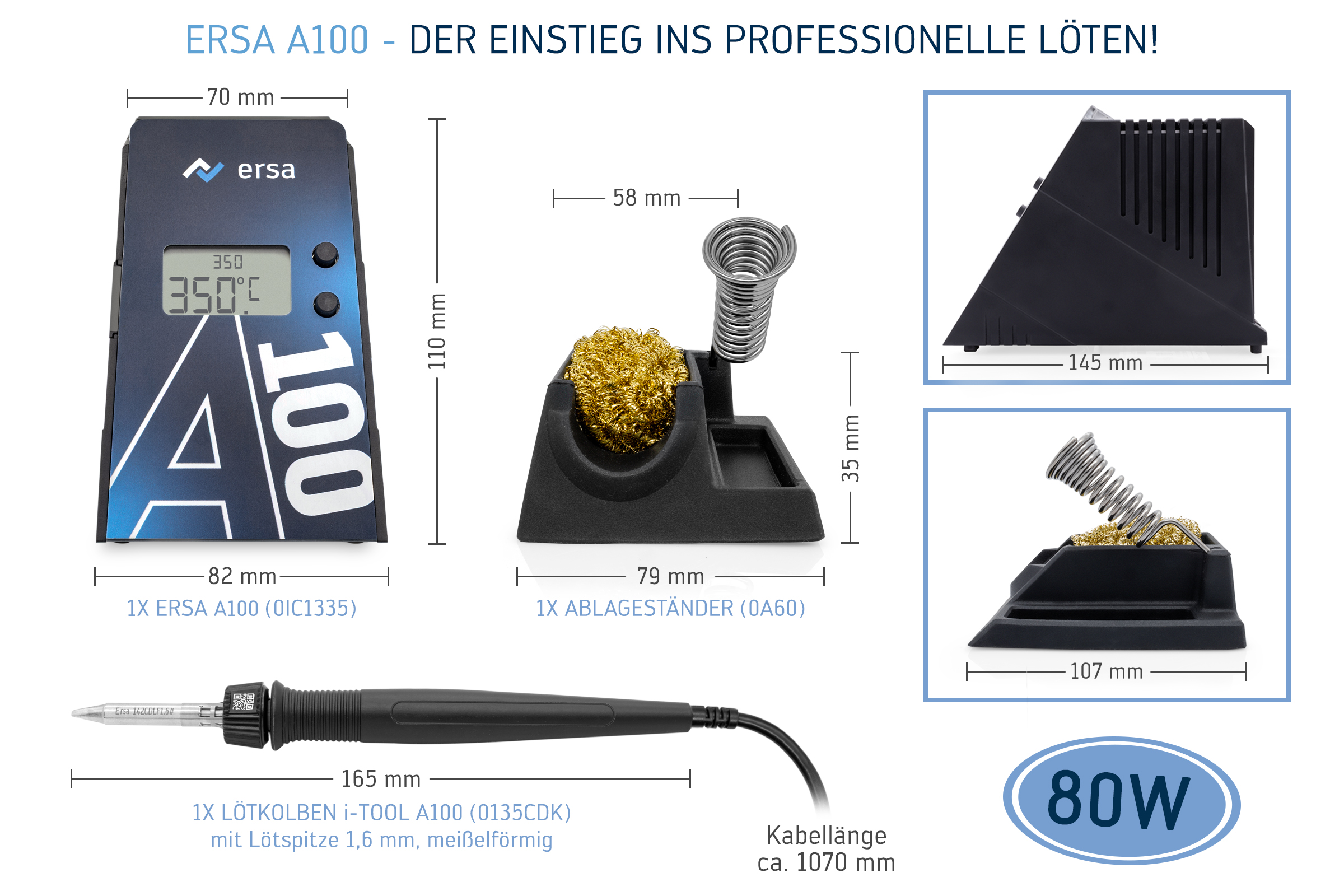

– Station: 145 × 80 × 103 mm / 1050 g
– Storage stand with brass wool: 140 × 80 × 80 mm / 200 g
