Upgrade kit for the i-CON MK1. The bundle contains the new i-TOOL MK2 soldering iron (0105CDJ) with Tip’n’Turn technology, the 0142CDLF16 soldering tip, and the matching ceramic to adapt the previous 0A52 storage stand.
i-TOOL MK2 soldering iron with max. 80 W micro high-performance heating element:

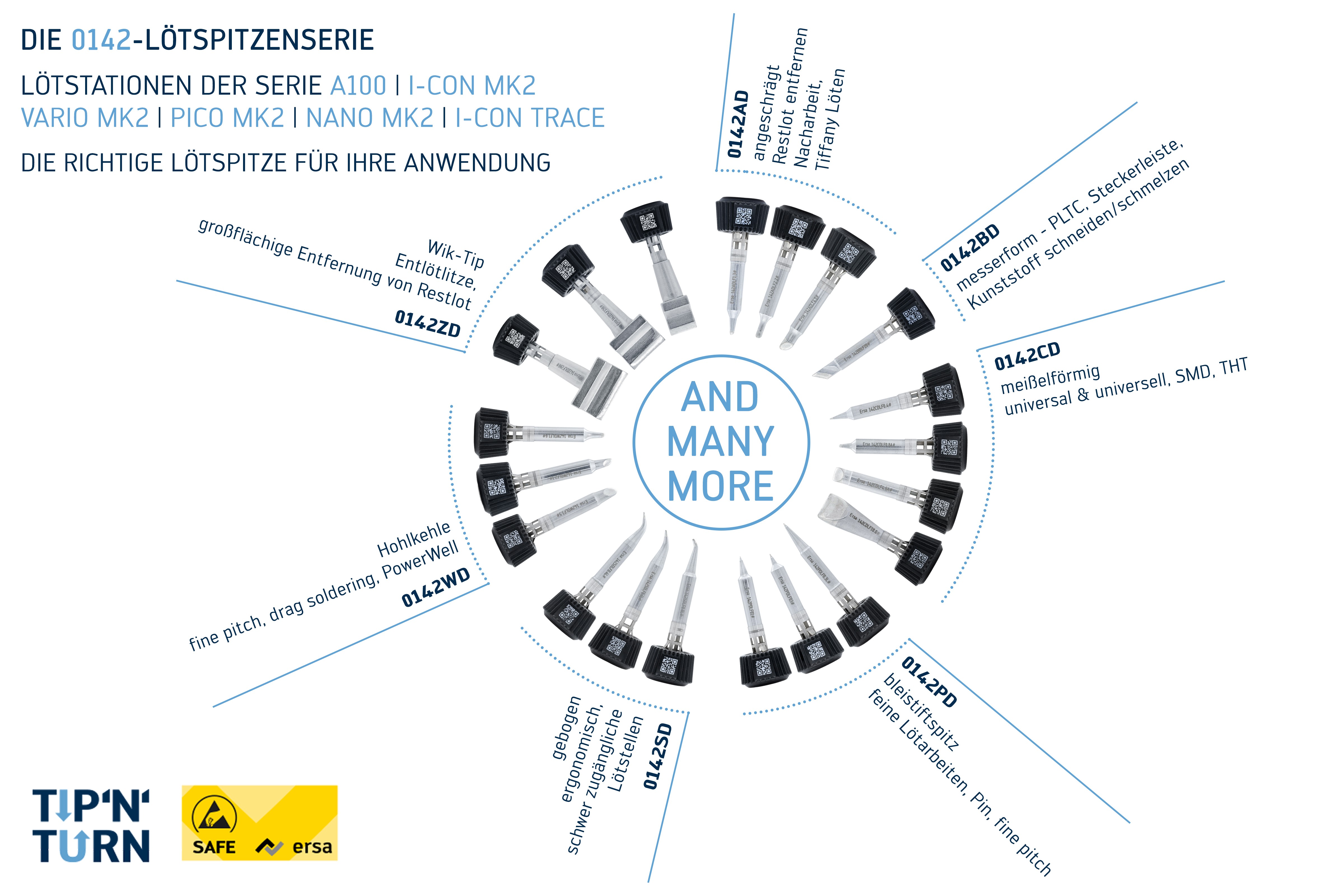

The new Tip’n’Turn technology enables faster and safer tip changes through the use of a new bayonet mount. In addition to improved ergonomics, the 142 tip series offers improved heat transfer and high performance at an optimal price-performance ratio.
This new heating technology enables lightning-fast heating and reheating of the i-TOOL MK2 soldering iron from room temperature to 350°C in approx. 9 seconds, and from standby (280°C) in approx. 3 seconds. The heating element and the soldering tip are separate from each other.
Soldering iron with packaging, equipped with a chisel-shaped ERSADUR-LF permanent soldering tip
The set includes:
– The complete i-Tool MK2 (0105CDJ)
– Ceramic 383974 for upgrading storage stand 0A52 to 0A59
| Heating time | 9.00 sec. |
|---|---|
| Max. solder temperature | 450 °C |
| ROHS compliance | Yes |
| Voltage | 24.00 Volt |
| Weight | 0,2 kg |
| anitstatic design | Yes |
| max. power | 150 Watt |
| operating type | at station |
| replacement heater | 016100J |
| soldering-/desoldering tip | 0142CDLF16 |
| soldering-tip diameter / width | 1.60 mm |
| soldering-tip form | chisel-shaped |
| surface soldering-tip | Permanent soldering tip |
| tip series | 142 |
| type of soldering tip | straight |
