HR 200 Rework System 400 Watts with Heating Plate 0IRHP100A-03

Description

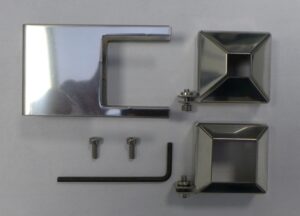

Ersa Hybrid Rework System HR 200 – Rework Right Out of the Box!

Unpack, set up, solder! Rework can be that simple today. The Ersa Hybrid Rework System HR 200 features a 400 W high-performance hybrid heating element capable of desoldering and soldering SMT components up to 30 x 30 mm in size. In addition, the system can be operated with a powerful 800 W infrared bottom heater. This ensures optimal heating of the assembly. The required power for the top and bottom heaters is preselected using a separate selector switch for each, with four heating levels, and activated via a foot switch. This leaves both hands free to remove the component with suitable tools during desoldering. Depending on the assembly and the set power, components can typically be soldered in or out in 60 to 180 seconds (1–3 minutes). During work breaks, the bottom heater automatically switches back to standby. The integrated PCB holder positions the assembly at the optimal height between the heaters. For workplace setup, ERSA recommends an optional cooling fan, as well as a thermocouple sensor and a temperature meter. Additional accessories—including a reflow process camera for monitoring soldering and desoldering processes—round out the equipment.

Technical Highlights:
– 400 W high-performance hybrid heating element
– Includes an 800 W IR heating plate
– Easy power selection with four settings
– Foot switch to activate the heaters
– Very compact unit (footprint 300 x 300 mm)

Technical Specifications:
– Dimensions (W x D x H): 300 x 300 x 280 mm
– Weight: 3.7 kg (base unit) / 1.6 kg (heating plate)
– Voltage: 230 V AC, 50–60 Hz, 4 A

– Upper radiator: 30 x 30 mm, 400 W hybrid radiator with medium-wave infrared heating and convection, 4 adjustable heat settings: 30, 50, 70, 90%

– Bottom heater: 150 x 150 mm, 800 W medium-wave infrared heater with glass cover
4 adjustable heat settings: 40, 60, 80, 100%, standby 30%

– PCB dimensions (W x D) 215 x 300 (+x) mm
– Working depth 170 mm
– Working distance (typ.) 300 mm (from top and bottom heaters)
– Component dimensions 1 x 1 to 30 x 30 mm
