ITEM NO. 0842KD

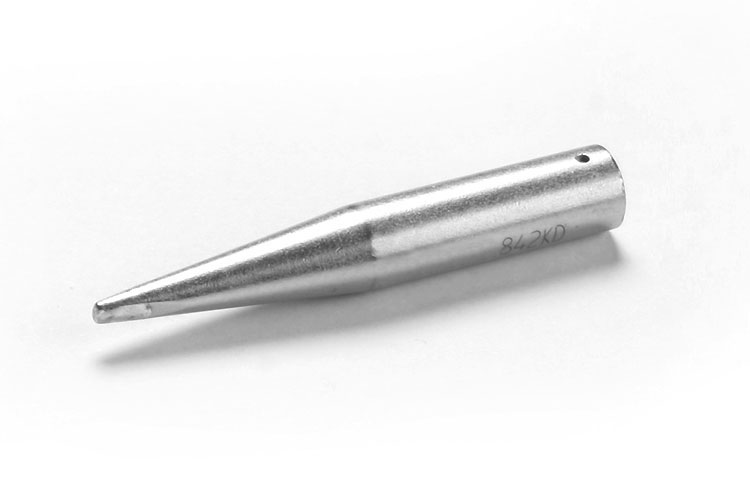

ERSA ERSADUR soldering tip, straight, extended, chisel-shaped, 2.2 mm

1 pcs.11,53 €

incl. VAT

plus shipping costs

Availability: available from stock
Catalog no.: 0842KD GTIN: 4003008076097
Express shipping
Business discount
Free hotline

Description

Permanent soldering tip, straight, extended, chisel-shaped, 2.2 mm wide, with ERSADUR coating for increased service life and higher heat requirements.

Suitable for soldering stations ANANLOG60, ANALOG60A, DIGITAL80, DIGITAL80A, DIGITAL2000A, RDS80, MICRO-CON60, TWIN80A, ELS8000/M/D, MS6000, and MS8000 soldering stations and the Power-Tool, Ergo-Tool, Multi-Pro, Multi-TC, PTC 70, and Multi-Sprint soldering irons.

ERSADUR soldering tips are manufactured to a high standard and designed for continuous use. They are electroplated with a layer of iron using a special process and protected against corrosion and oxidation by an additional layer of chrome. Perfect heat transfer protects the soldering iron’s heating element from overheating and premature wear.

technical data

Dimensions 115 × 85 × 3 mm
ROHS compliance

Yes
Weight 0,01 kg
complete length

55 mm
inner diameter shank

6.60 mm
model

straight
outer diameter shaft

8.50 mm
soldering-tip diameter / width

2.20 mm
soldering-tip form

chisel-shaped
surface soldering-tip

Permanent soldering tip
tip series

842

EU product manager

Ersa GmbH & Co. KG
https://www.kurtzersa.de/
Leonhard Karl Str. 24
DE 97877 Wertheim
