ITEM NO. 0842BDLF

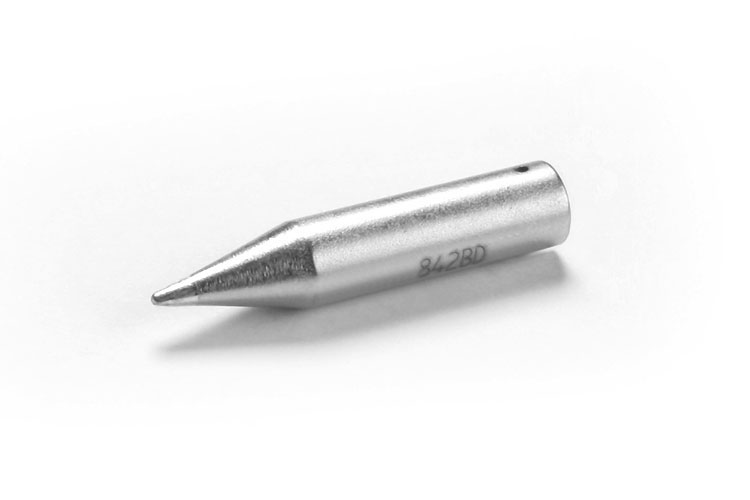

ERSA ERSADUR soldering tip, straight, pencil tip, 1.0 mm

1 pcs.15,09 €

incl. VAT

plus shipping costs

Availability: available from stock
Catalog no.: 0842BDLF GTIN: 4003008074635
Express shipping
Business discount
Free hotline

Description

Long-life soldering tip, straight, pencil-point, 1.0 mm diameter, with ERSADUR-LF coating (lead-free soldering) with increased service life for increased heat requirements.

Suitable for the ANANLOG60, ANALOG60A, DIGITAL80, DIGITAL80A, DIGITAL2000A, RDS80, MICRO-CON60, TWIN80A, ELS8000/M/D, MS6000 and MS8000 soldering stations and the Power-Tool, Ergo-Tool, Multi-Pro, Multi- TC, PTC 70 and Multi-Sprint.

ERSADUR soldering tips are manufactured to a high standard and designed for continuous operation. They are electroplated with an iron layer in a special process and protected against corrosion and oxidation by an additional chrome layer. Perfect heat transfer protects the soldering iron’s heating element from overheating and premature wear.

technical data

Dimensions 43 × 8 × 8 mm
ROHS compliance

Yes
Weight 0,01 kg
complete length

42 mm
inner diameter shank

6.60 mm
model

straight
outer diameter shaft

8.50 mm
soldering-tip diameter / width

1.00 mm
soldering-tip form

pencil point
surface soldering-tip

Permanent soldering tip
tip series

842

EU product manager

Ersa GmbH & Co. KG
https://www.kurtzersa.de/
Leonhard Karl Str. 24
DE 97877 Wertheim
