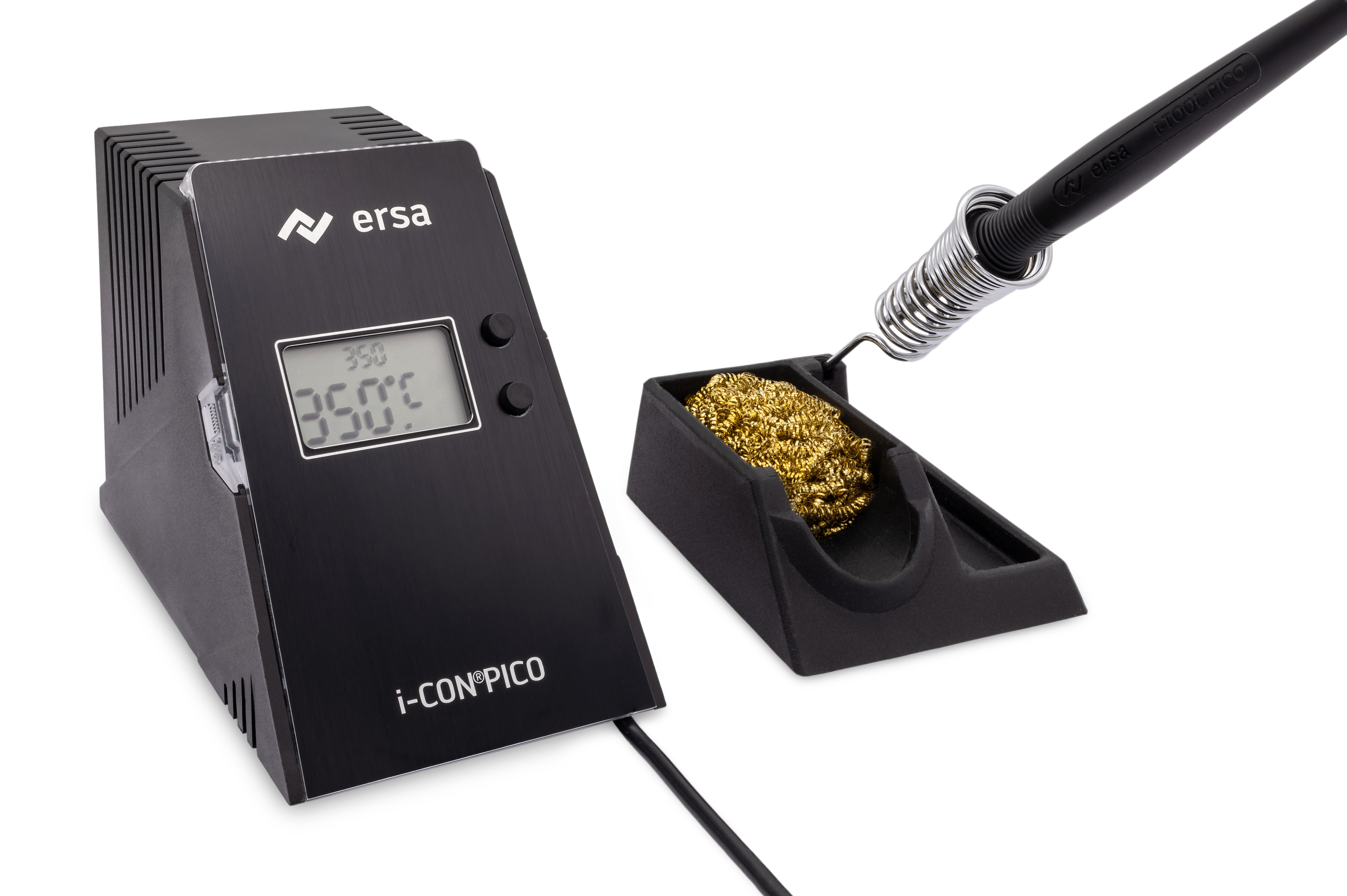

ERSA i-CON PICO MK2 soldering station

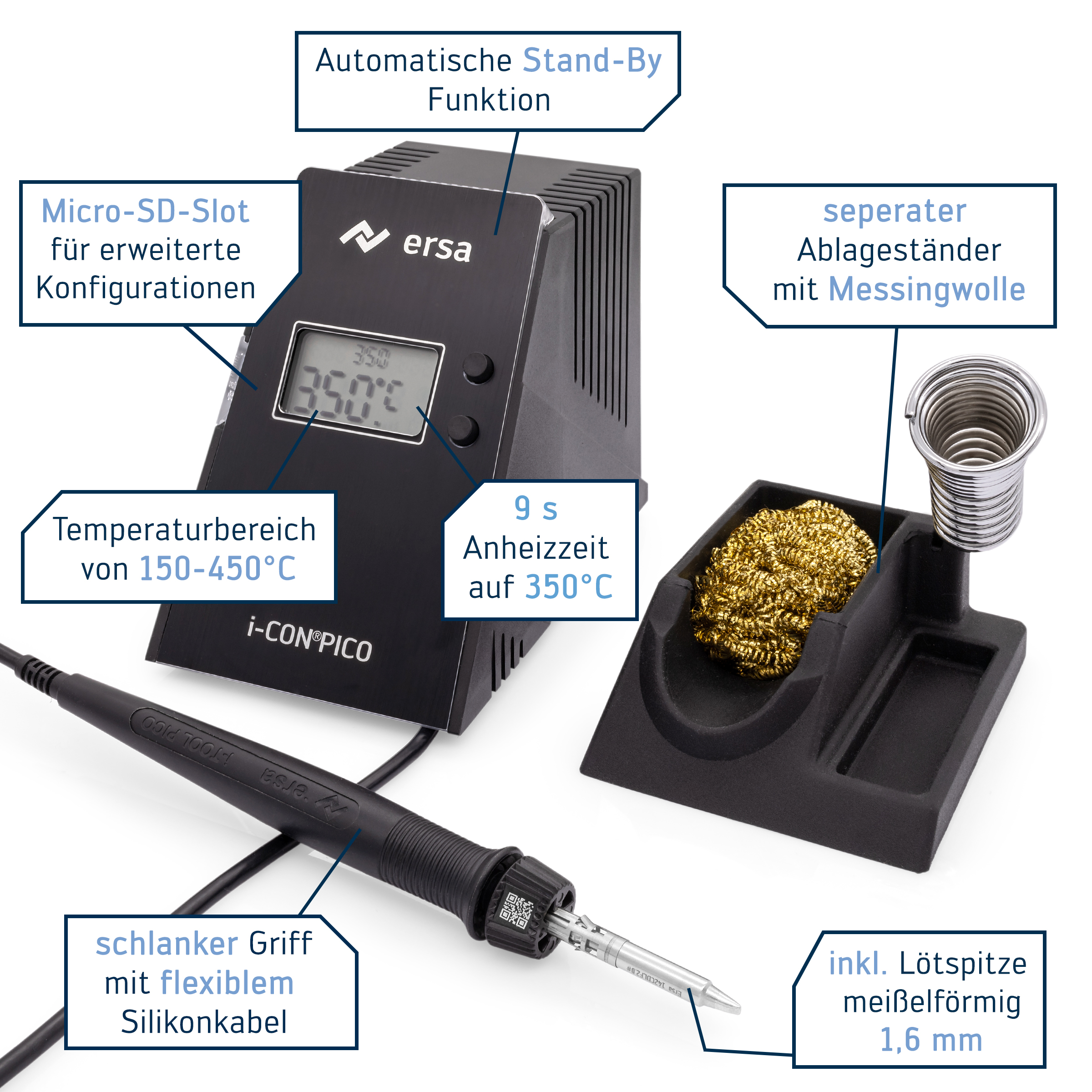

small in size, big on performance, with a maximum of 80W at 350°C (9s heat-up time). This with the i-TOOL PICO MK2 soldering iron in ballpoint pen size, connected via a highly flexible silicone cable and insertable inexpensive soldering tips from ERSA’s largest type range (0142 series…). The adjustable temperature range is 150-450°C.

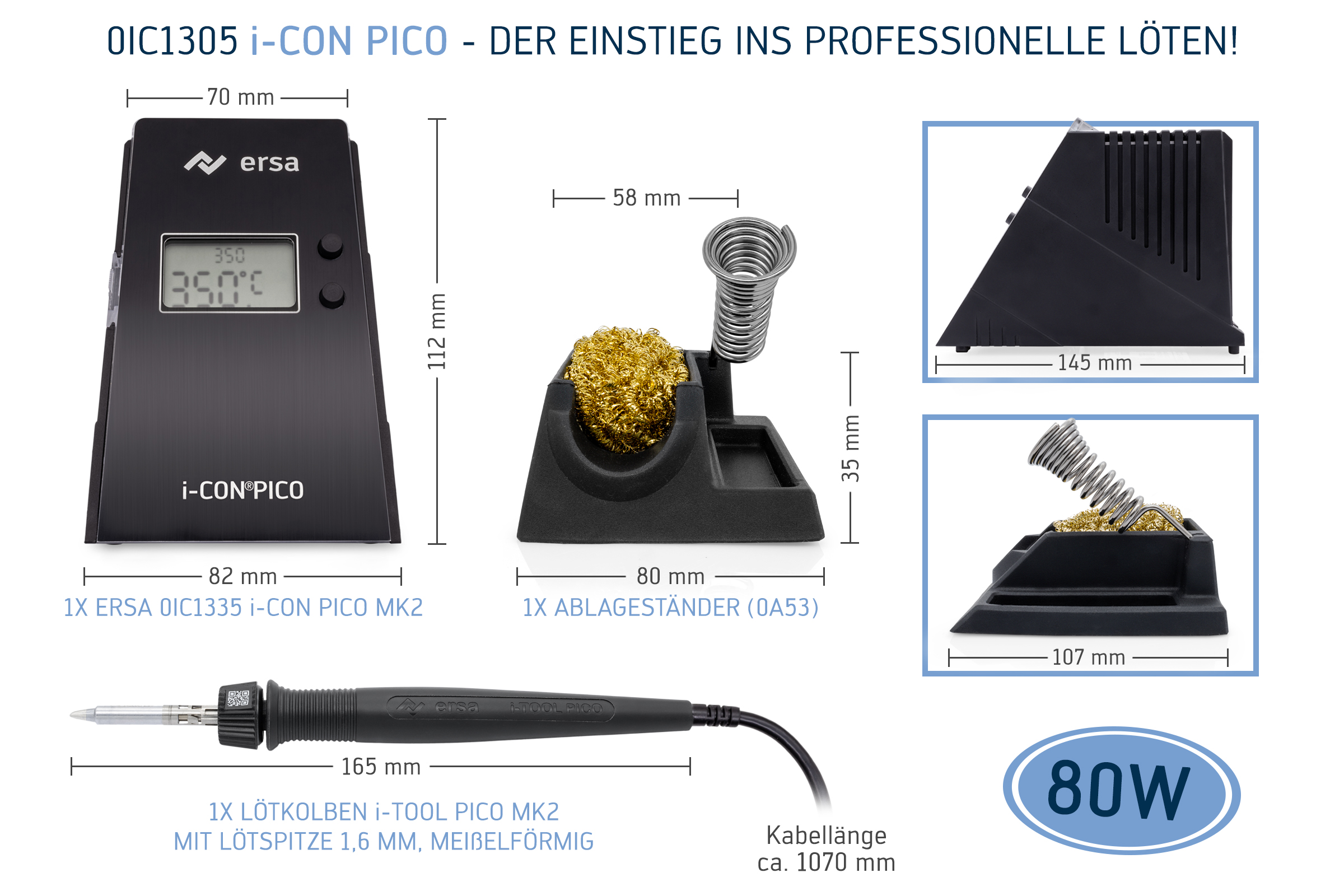

Scope of delivery:

– Electronic control station max. 80W (0IC1335)
– i-TOOL PICO MK2 80W soldering iron (0135CDK)
– ERSADUR chisel-shaped soldering tip 1.6 mm (0142CDLF16)
– Stand (0A60)

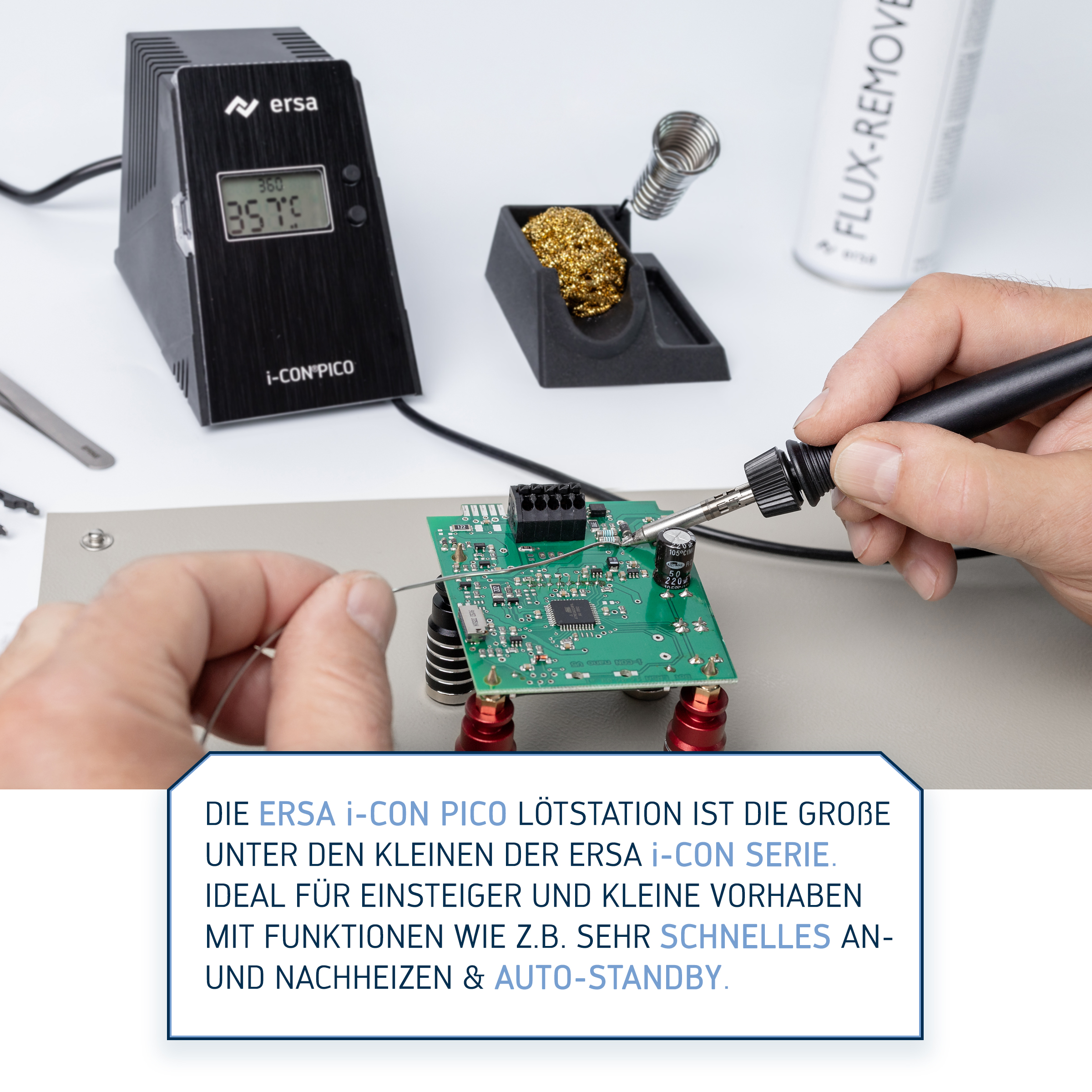

The i-CON PICO MK2 is the right soldering station for users who want to solder professionally right from the start. It offers beginners all the functions that are also valued in industrial production, such as very fast heating and reheating, standby and calibration function. Using software and an optional micro SD card, further settings can be made to increase operating safety, such as:

setting of 3 fixed temperatures
assignable energy functions
locking function

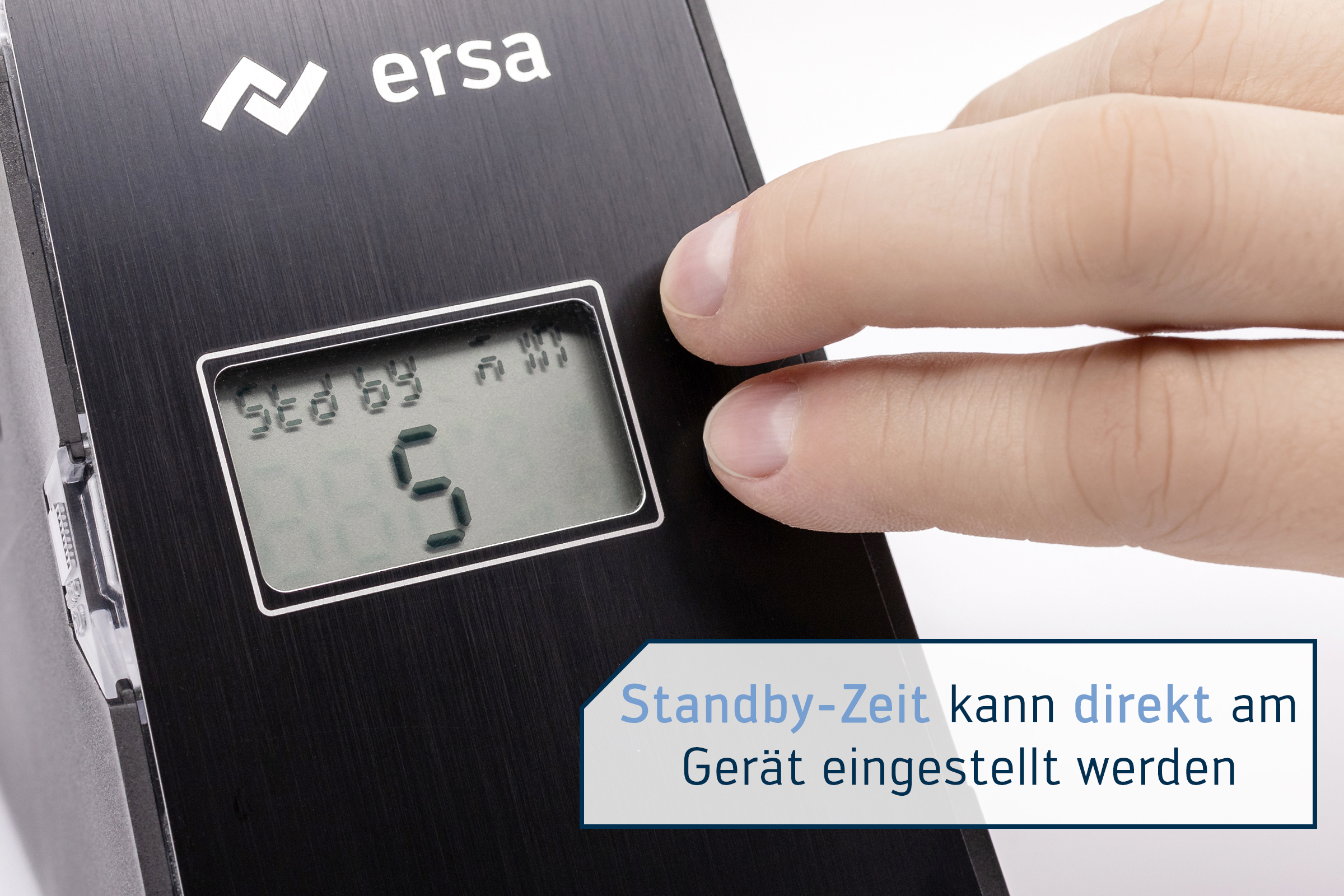

shutdown time for energy saving and increasing the service life of the soldering tips.

can be made.

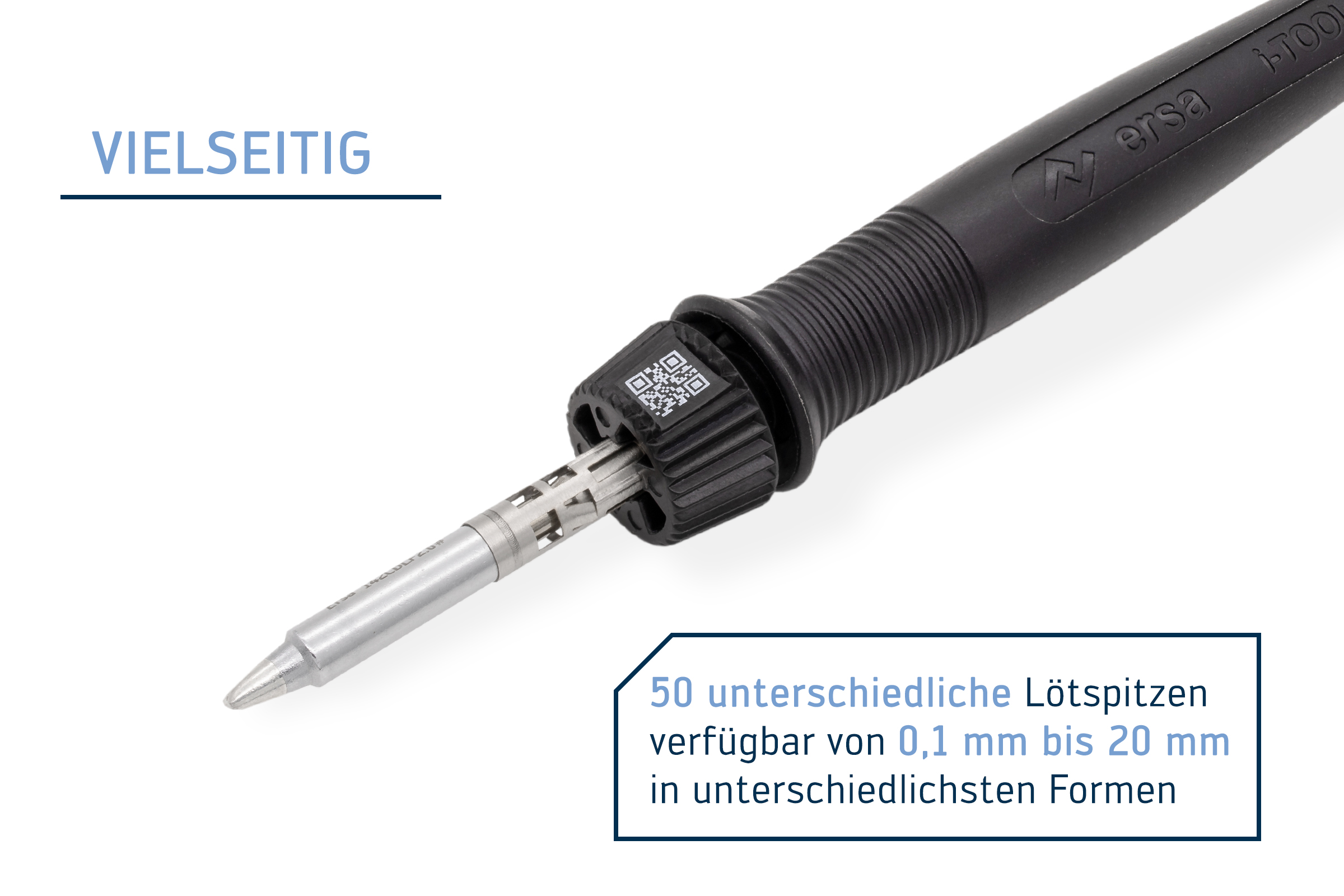

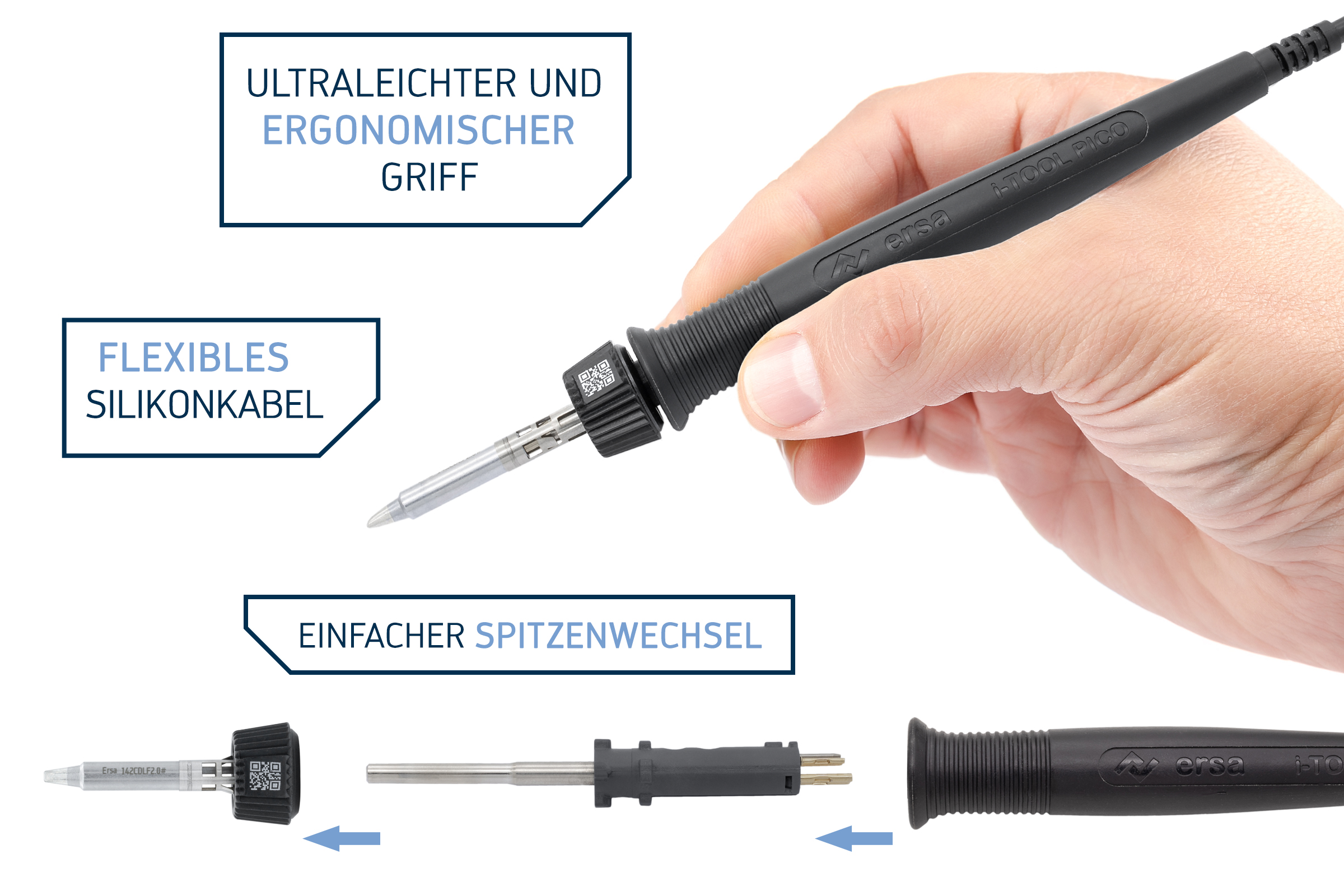

The integrated and patented TIP`N TURN bayonet lock for the soldering tips ensures the quickest and easiest change, while the latest i-TOOL MK2 generation guarantees 20% more soldering power.
