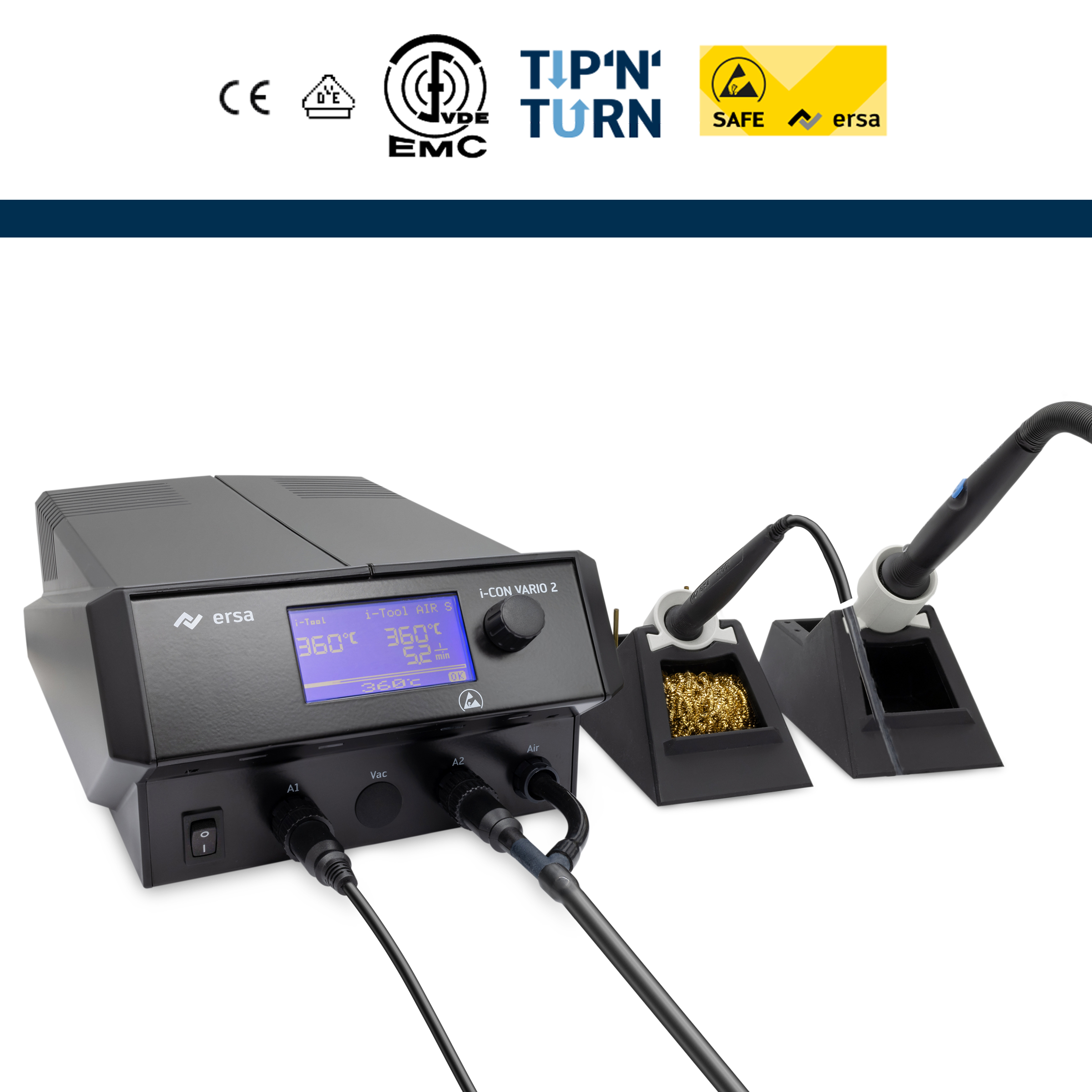

ERSA i-CON VARIO 2 MK2 multi-channel soldering and desoldering station 200W,

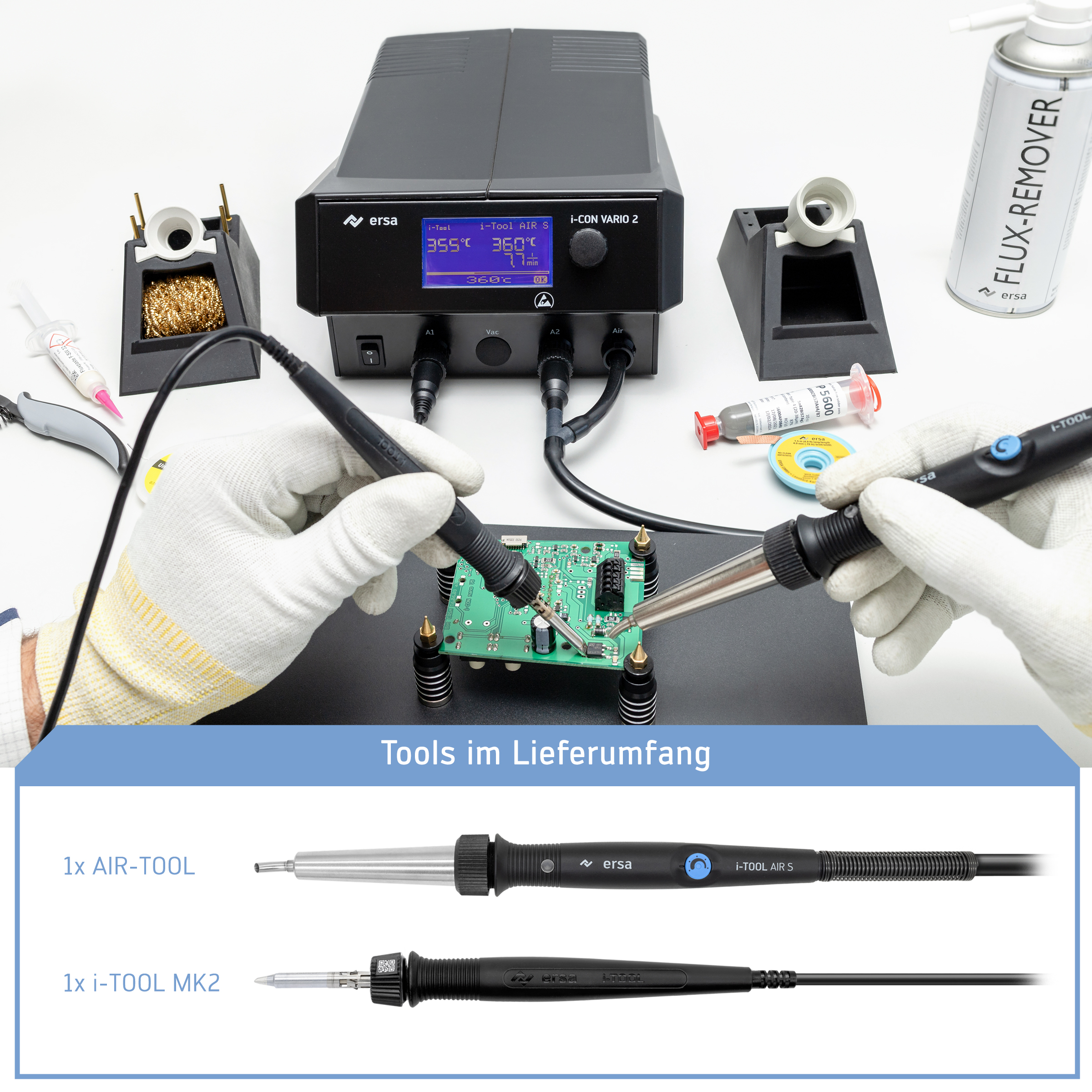

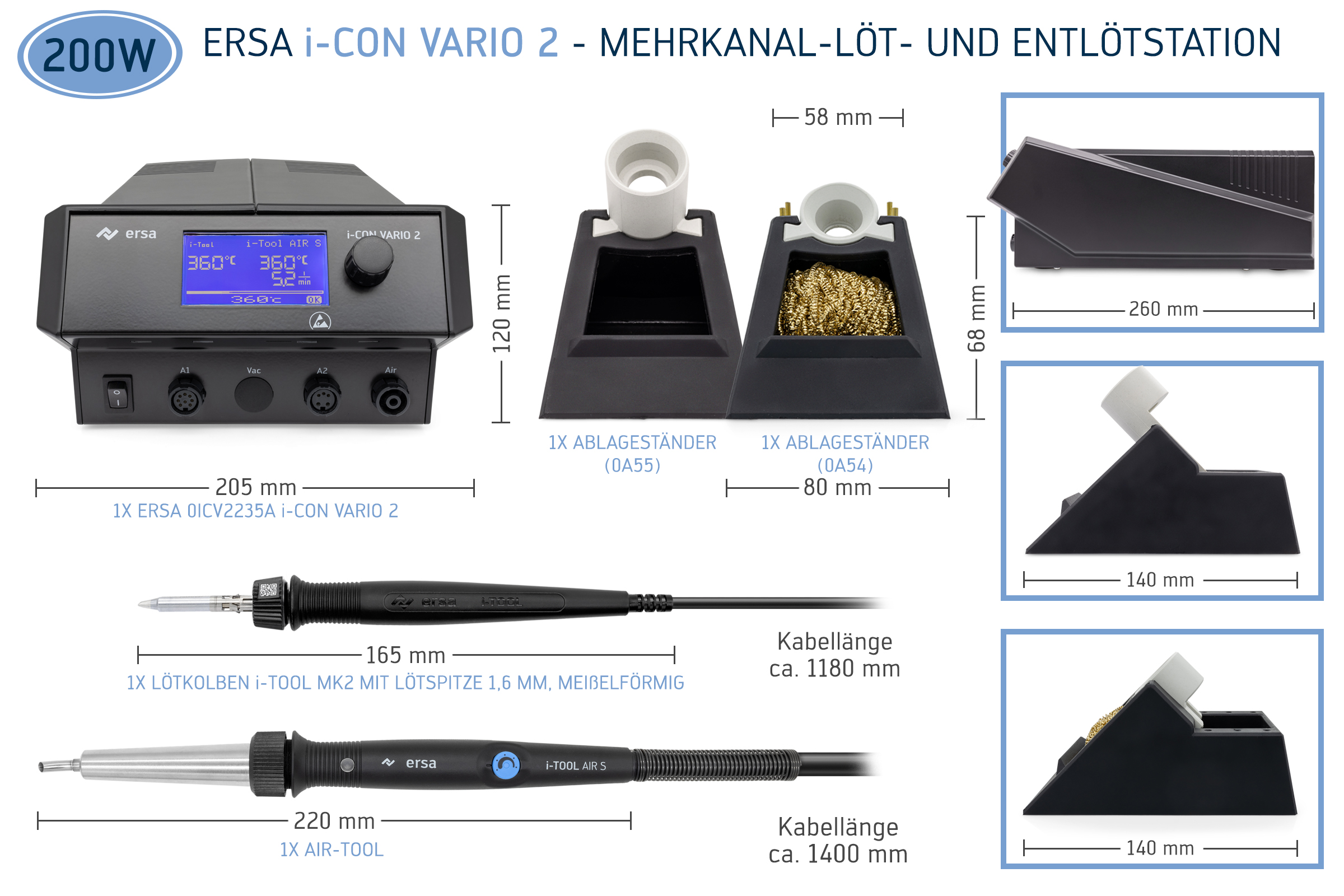

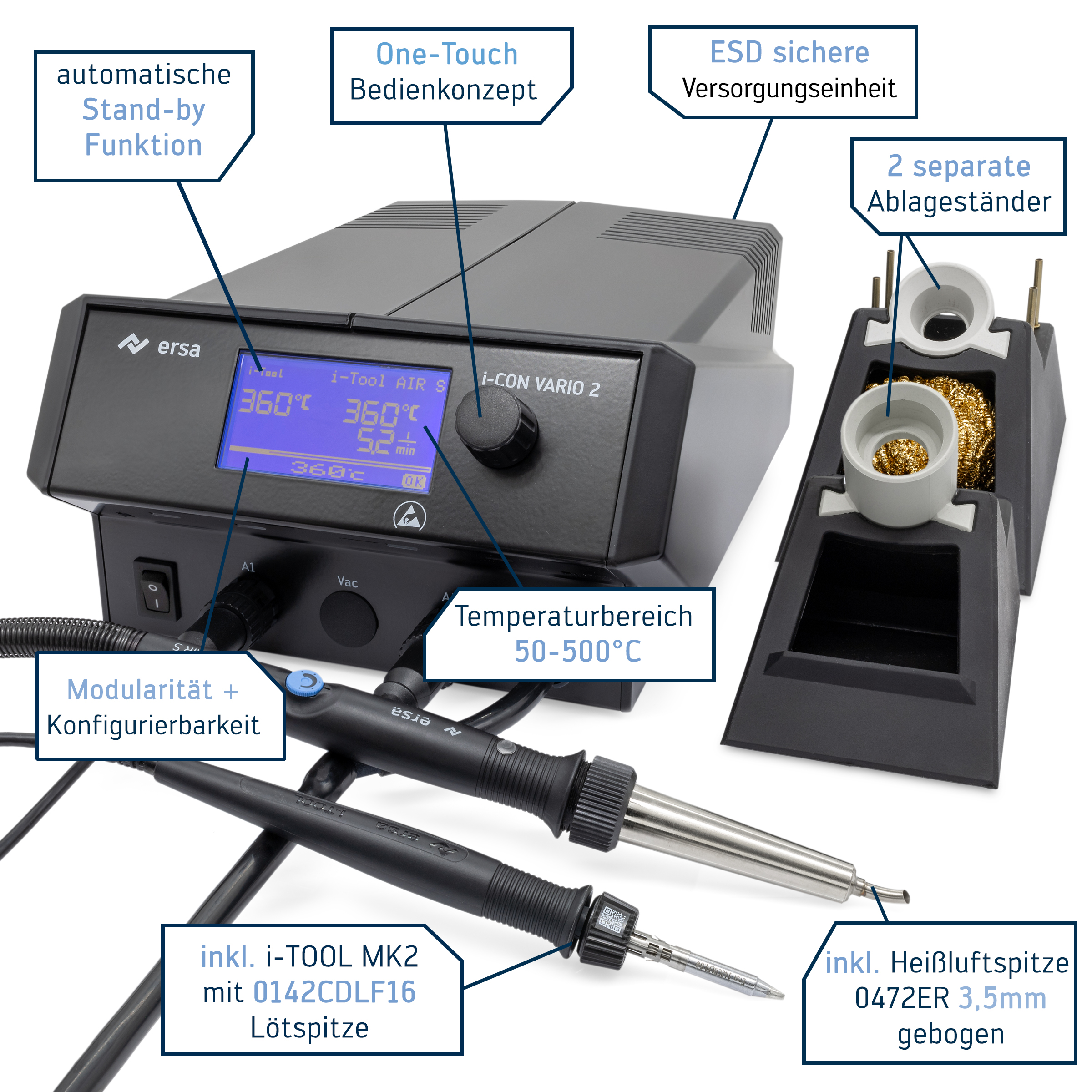

Scope of delivery
– Electronic station, antistatic, 200W, air volume 2-20l/min (0ICV2035A)
– Hot air pencil i-Tool AIR S 200W, 50-550°C (0470ERJ)
– Hot air tip 3.5 mm diameter (0472ER)
– i-Tool 150W soldering iron (0105CDJ) with 1.6 mm chisel-shaped soldering tip (0142CDLF16)
– i-Tool AIR S stand (0A55)
– i-Tool stand (0A59)

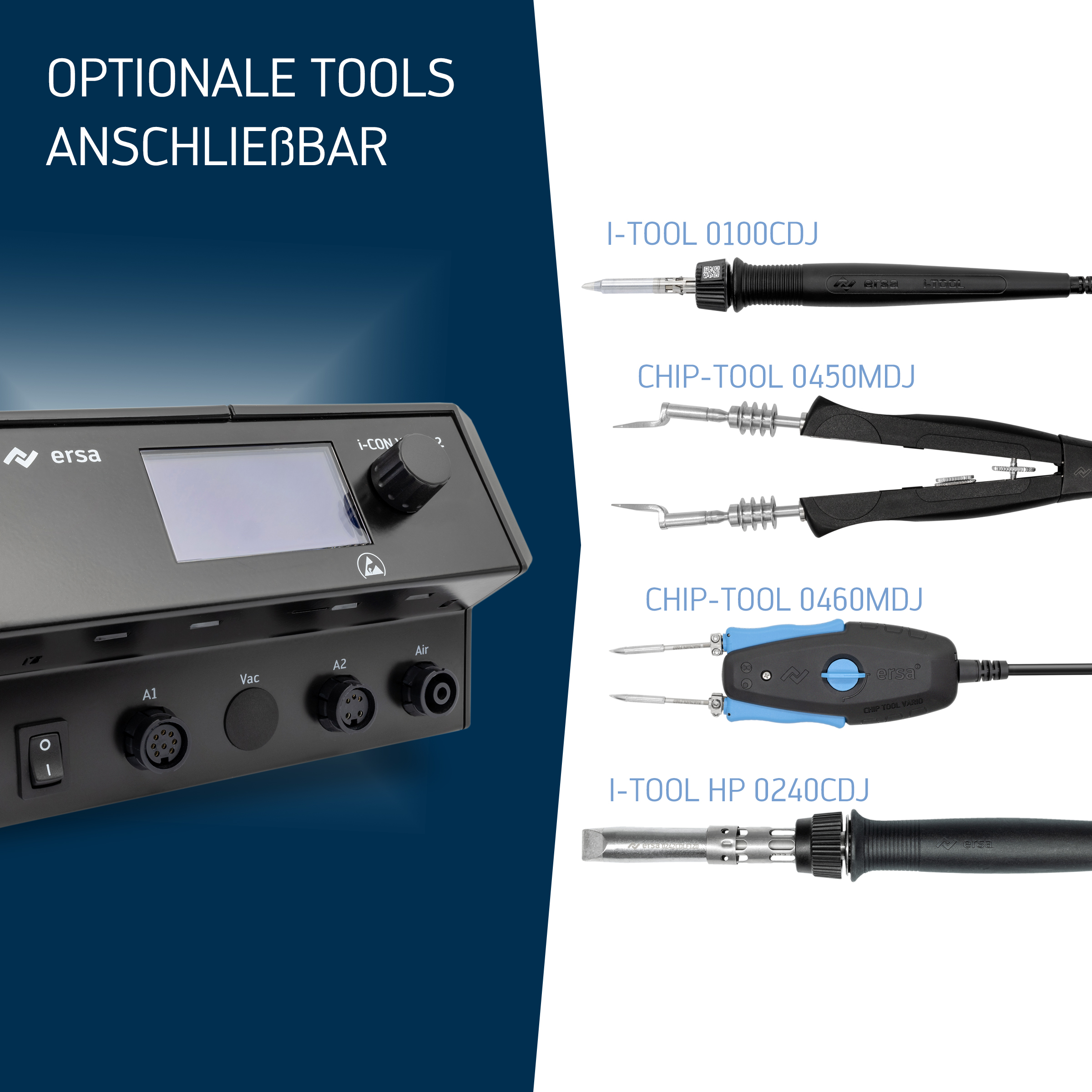

The i-CON VARIO 2 MK2 multi-channel soldering and desoldering station provides professional soldering users with two simultaneously usable soldering tools. In parallel with the new, ergonomic i-Tool AIR S hot air clamp (200 W), the 150 W i-Tool can be used to operate another soldering tool for conventional soldering or the new
Chip Tool Vario (80 W) desoldering tweezers.

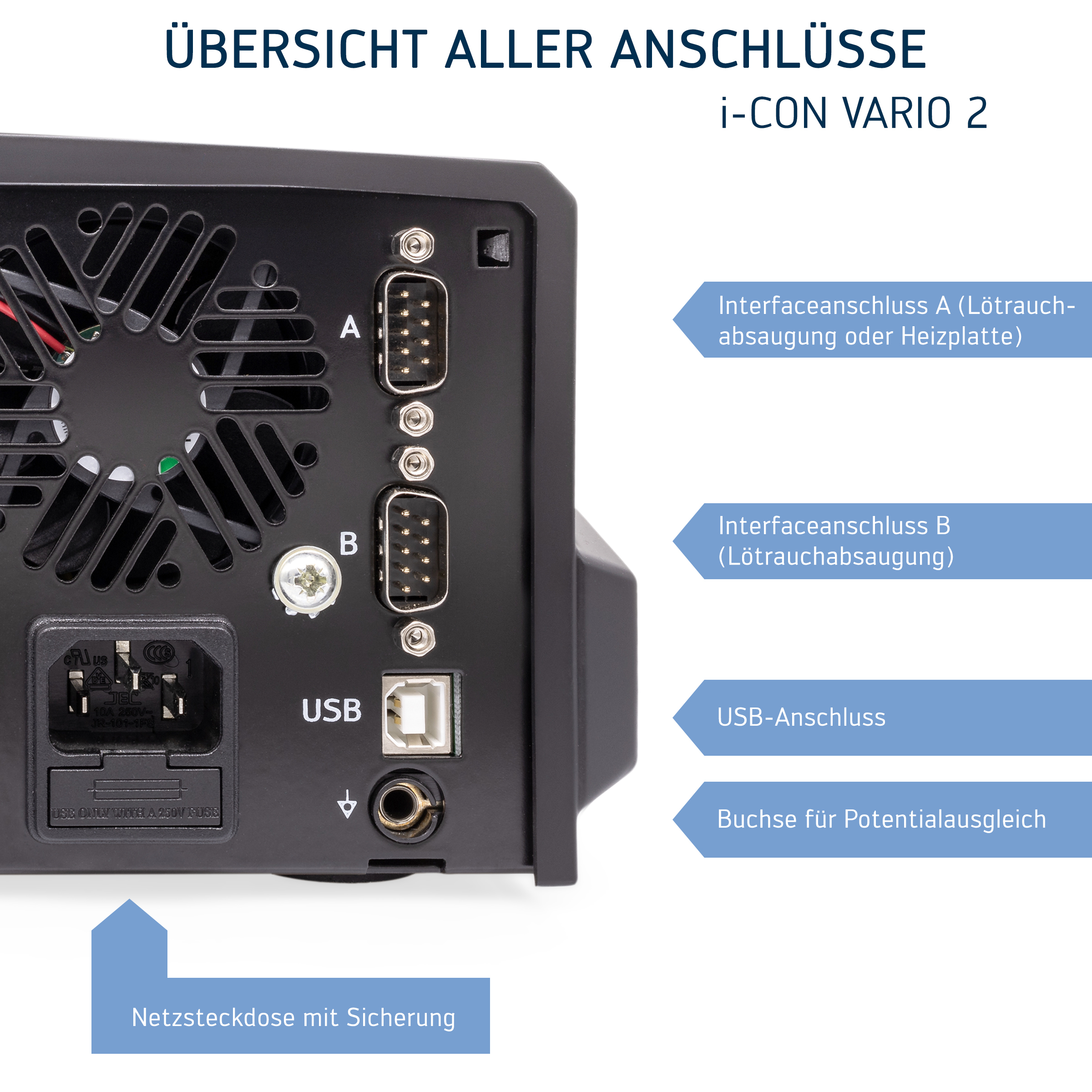

are further Ersa soldering tools. The compact, ESD-safe supply unit offers the same simple and clear operability as usual in the i-CON family. Interfaces to Ersa solder fume extraction units and preheating plates are just as much a matter of course as the simple and safe configuration of the station via a microSD memory card, as with the larger i-CON VARIO 4 MK2.
The current firmware versions can be viewed and downloaded at any time from http://www.ersa.de/vario
.

i-Tool-AIR S
Ergonomically handy, powerful! This is how the i-tool AIR S can be aptly described. The slim and light handpiece carries a 200 W heating cartridge, allowing fatigue-free work on a wide range of SMD components. The hot air volume can be easily adjusted directly on the handpiece; the respective air volume (2 to 20 l/min) can be clearly seen on the display of an i-CON VARIO 2 or 4. The air volume can be precisely metered even when soldering the smallest chip resistors. Various nozzles can be used to ensure optimum heating of the components. A motion sensor ensures that the hot air is automatically switched off after a programmable time during work breaks.
The i-Tool-AIR S is switched on and off using the light sensor in the handpiece.

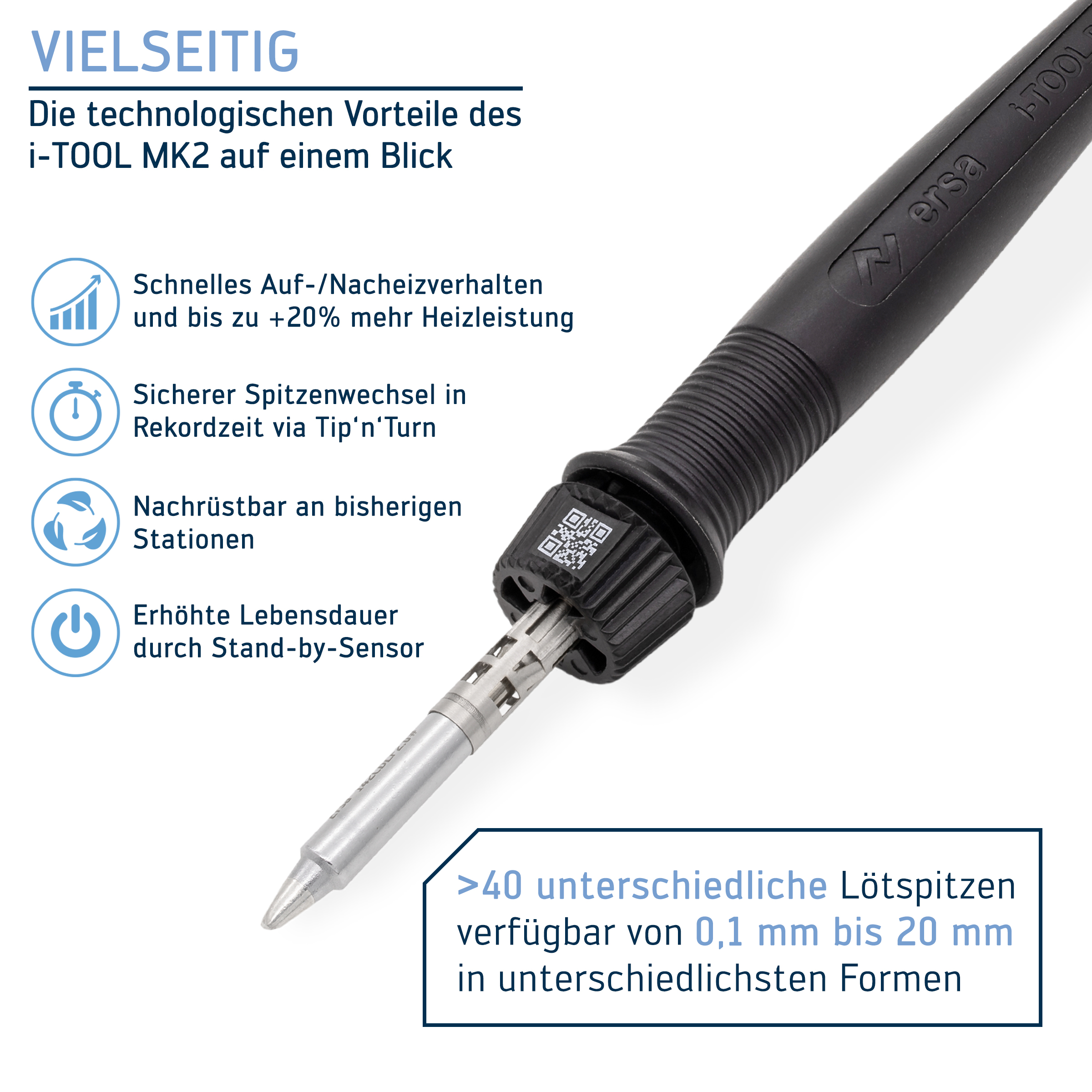

i-Tool
The i-Tool is an extremely light, powerful fine soldering iron with a comprehensive selection of affordable permanent soldering tips. 150 W power ensures the fastest heat-up and recovery times. Process window alarm, energy power levels and automatic stand-by sensor give i-CON users an unprecedented level of process control.

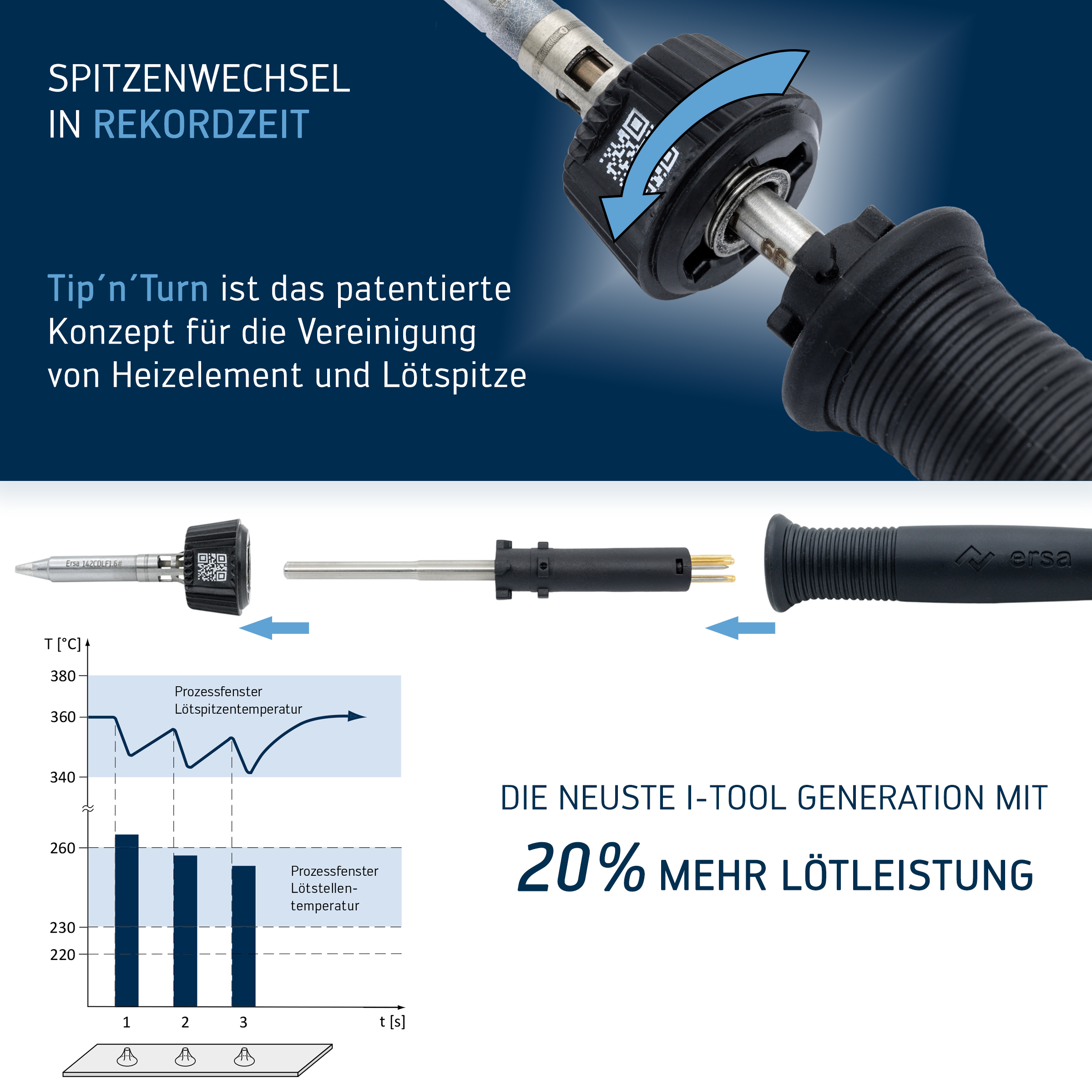

The integrated Tip’N’Turn bayonet lock ensures quick and easy tip changes and also provides a 20-25% improvement in performance compared to screw connections.

– Energy consumption in standby approx. 25W
