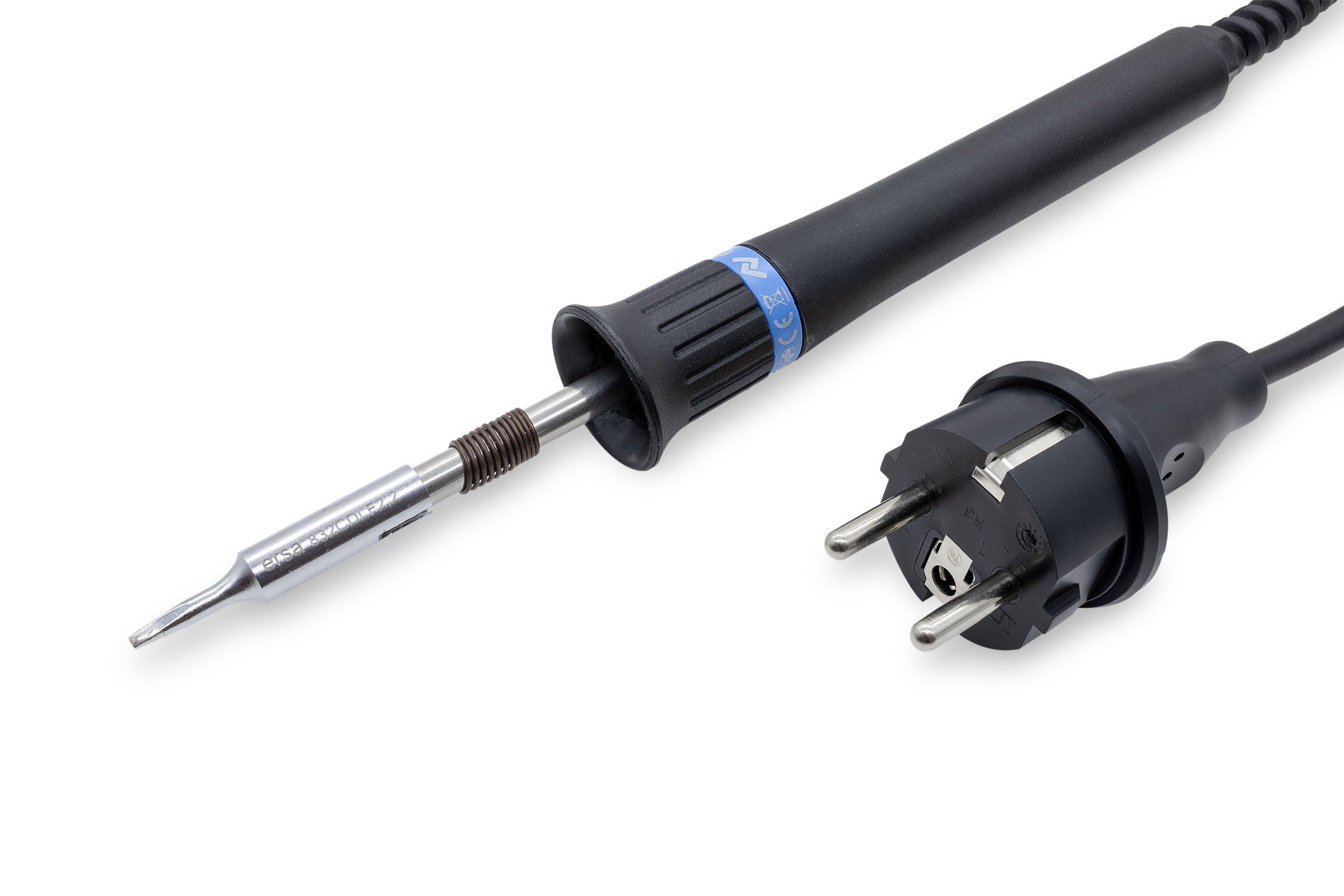

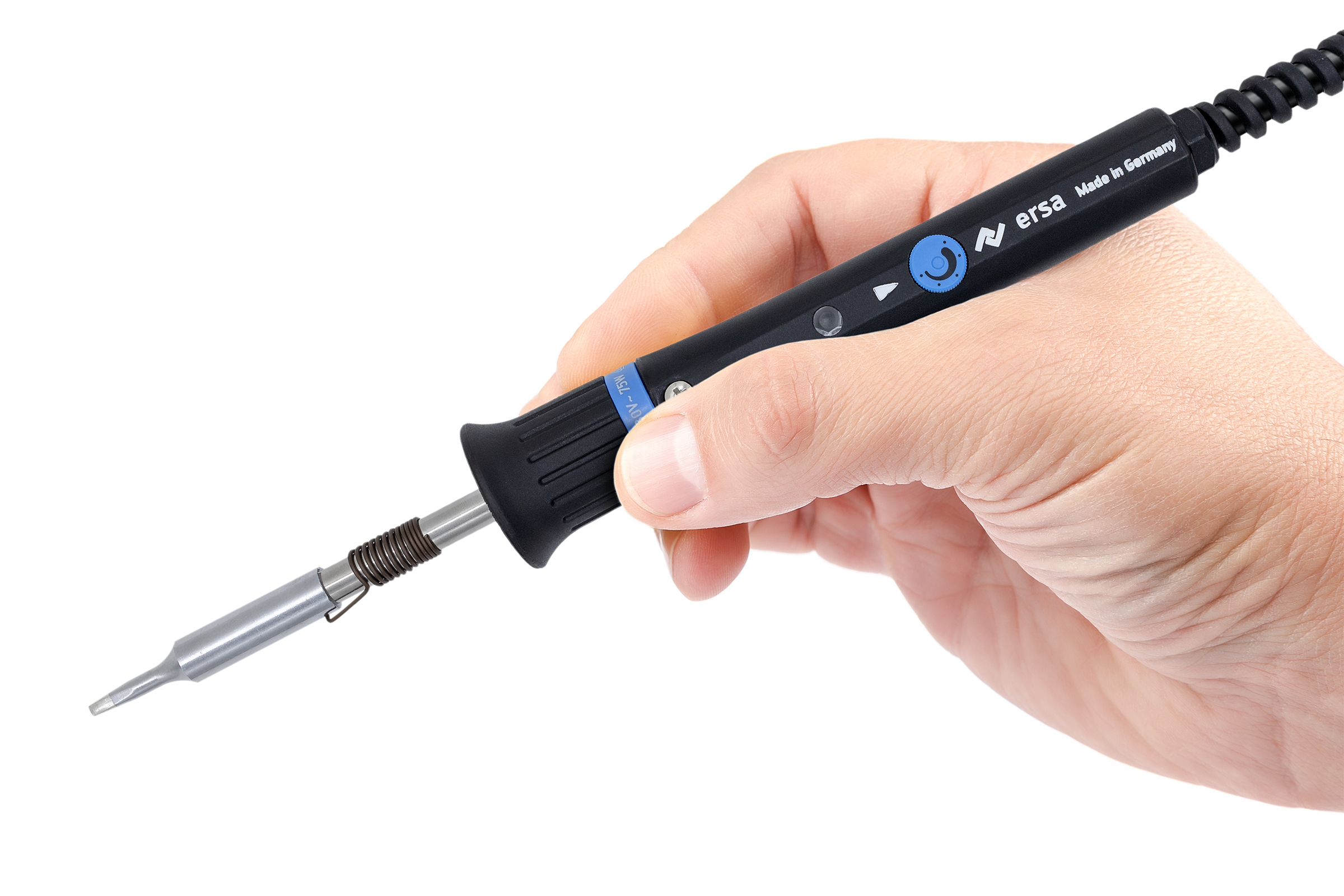

ERSA Lötkolben PTC70
power soldering iron with temperature control
Powerful, robust, temperature-controlled soldering iron.

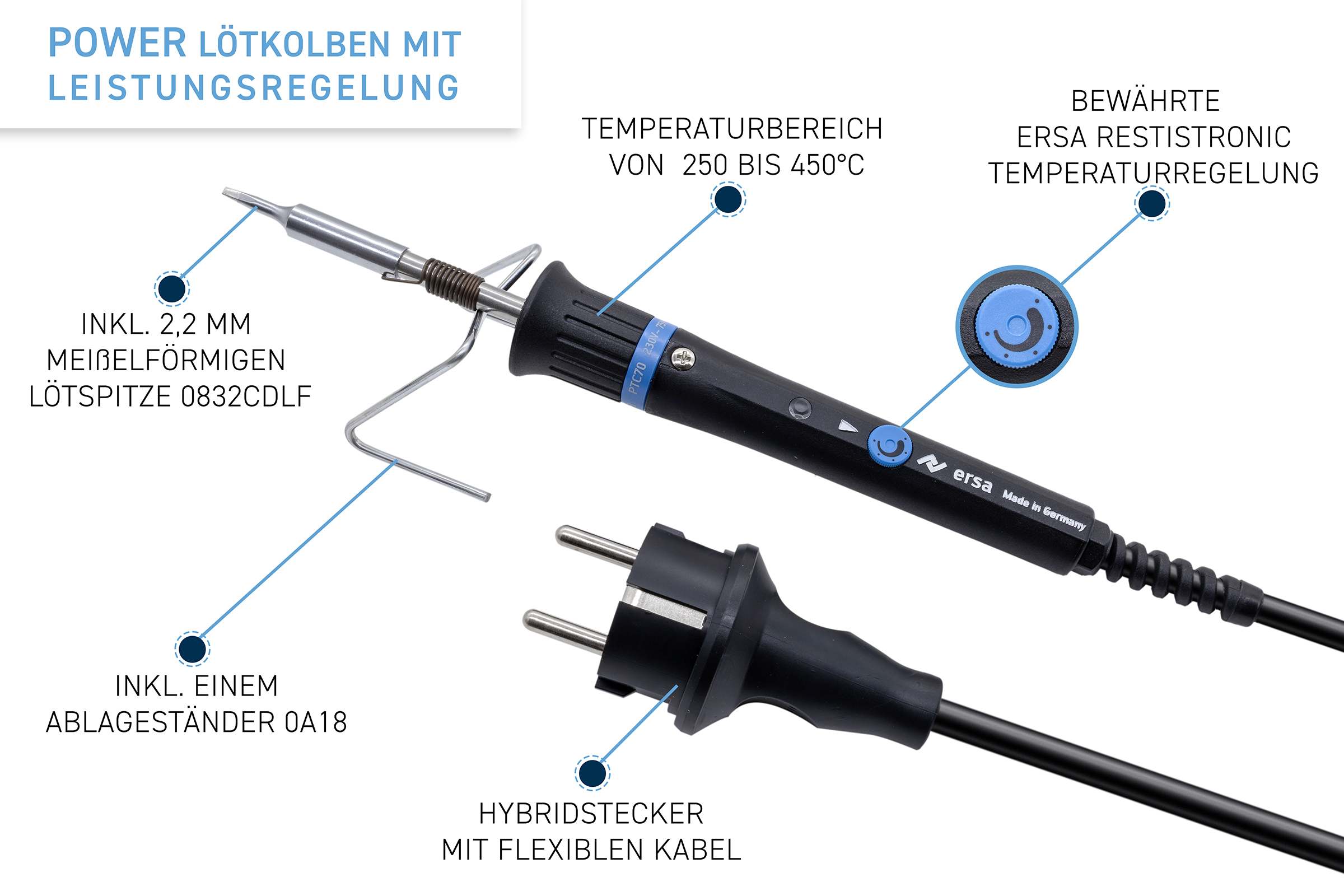

The proven ERSA RESTISTRONIC temperature control, in conjunction with the ceramic PTC heating element, ensures fast heating and reheating.

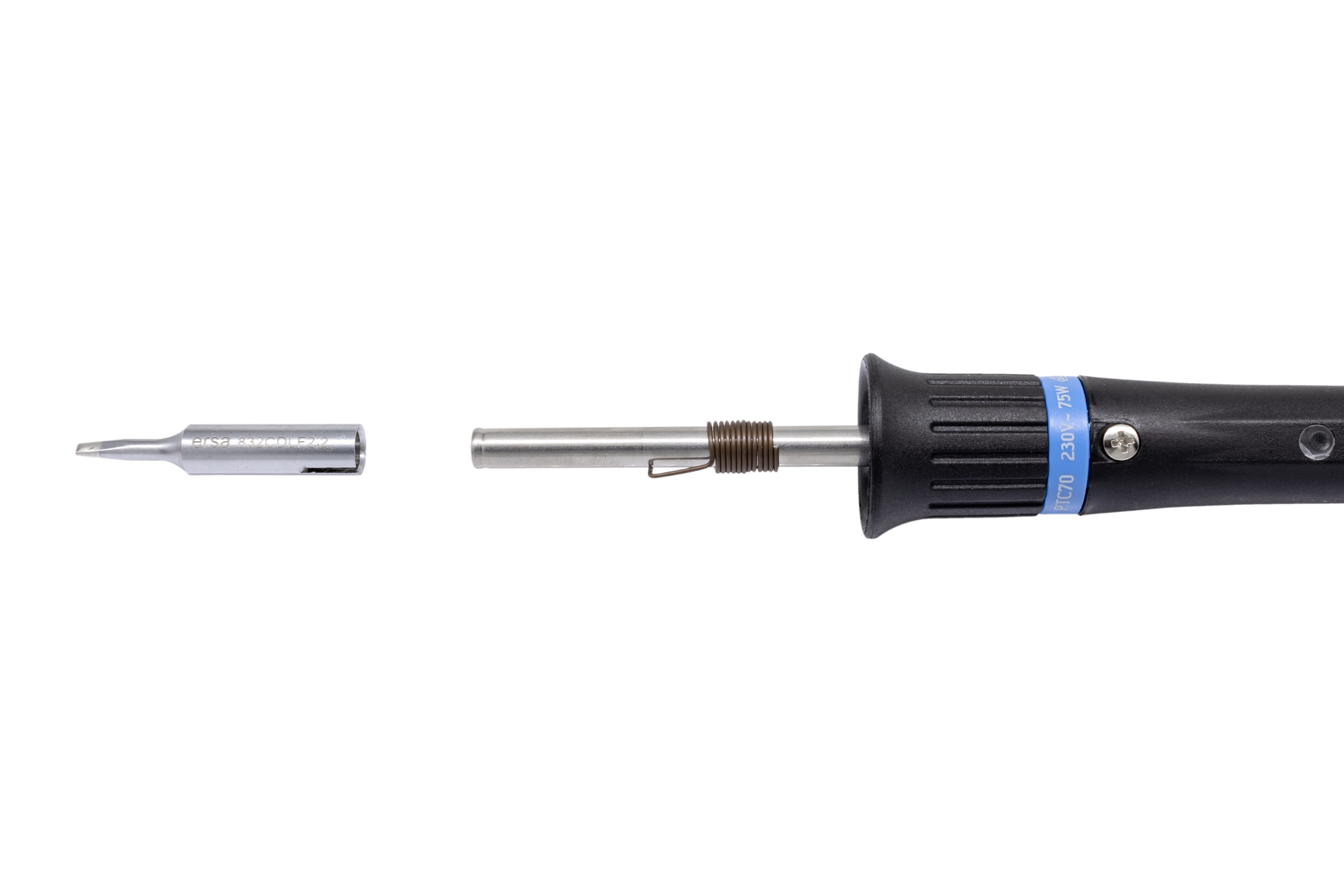

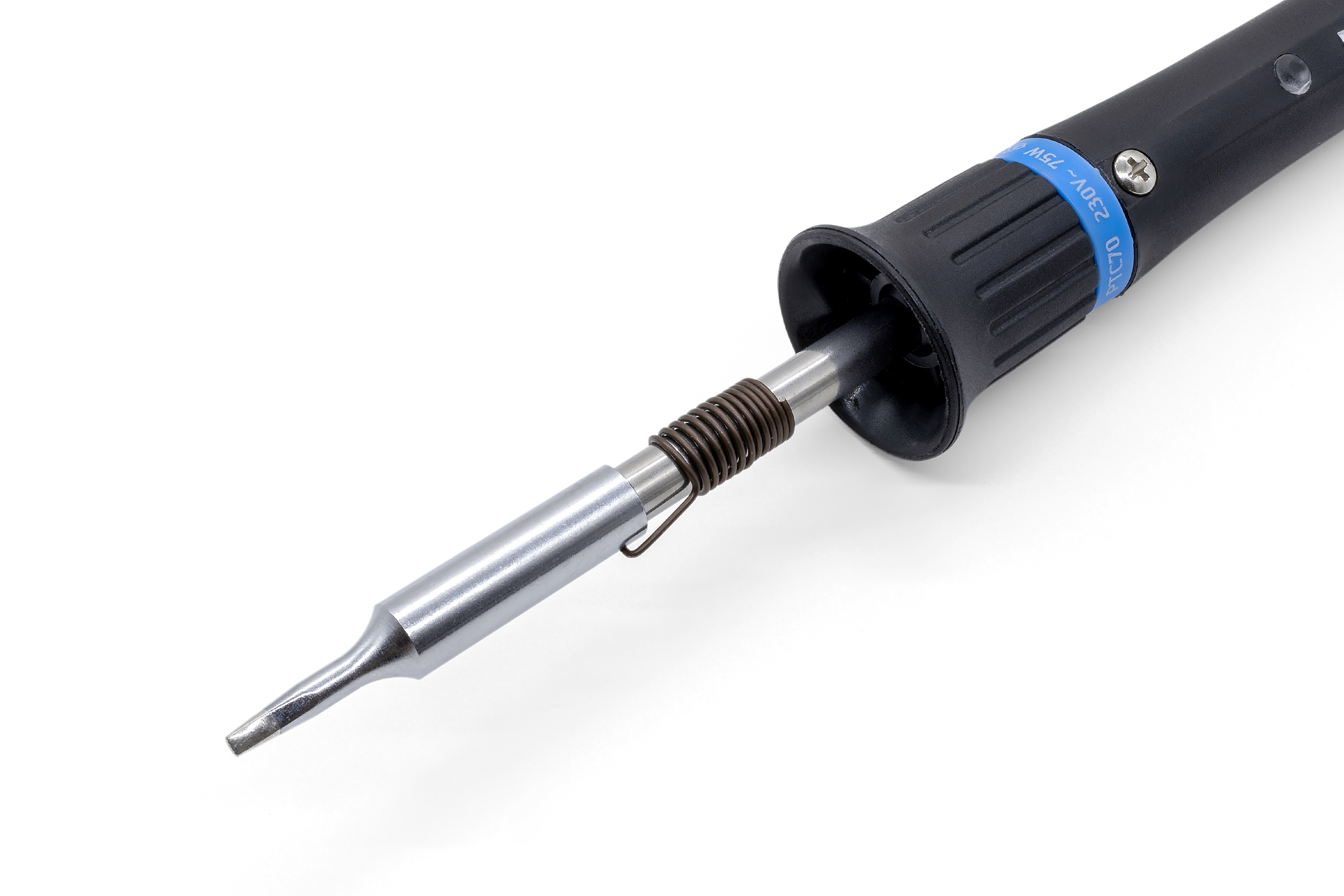

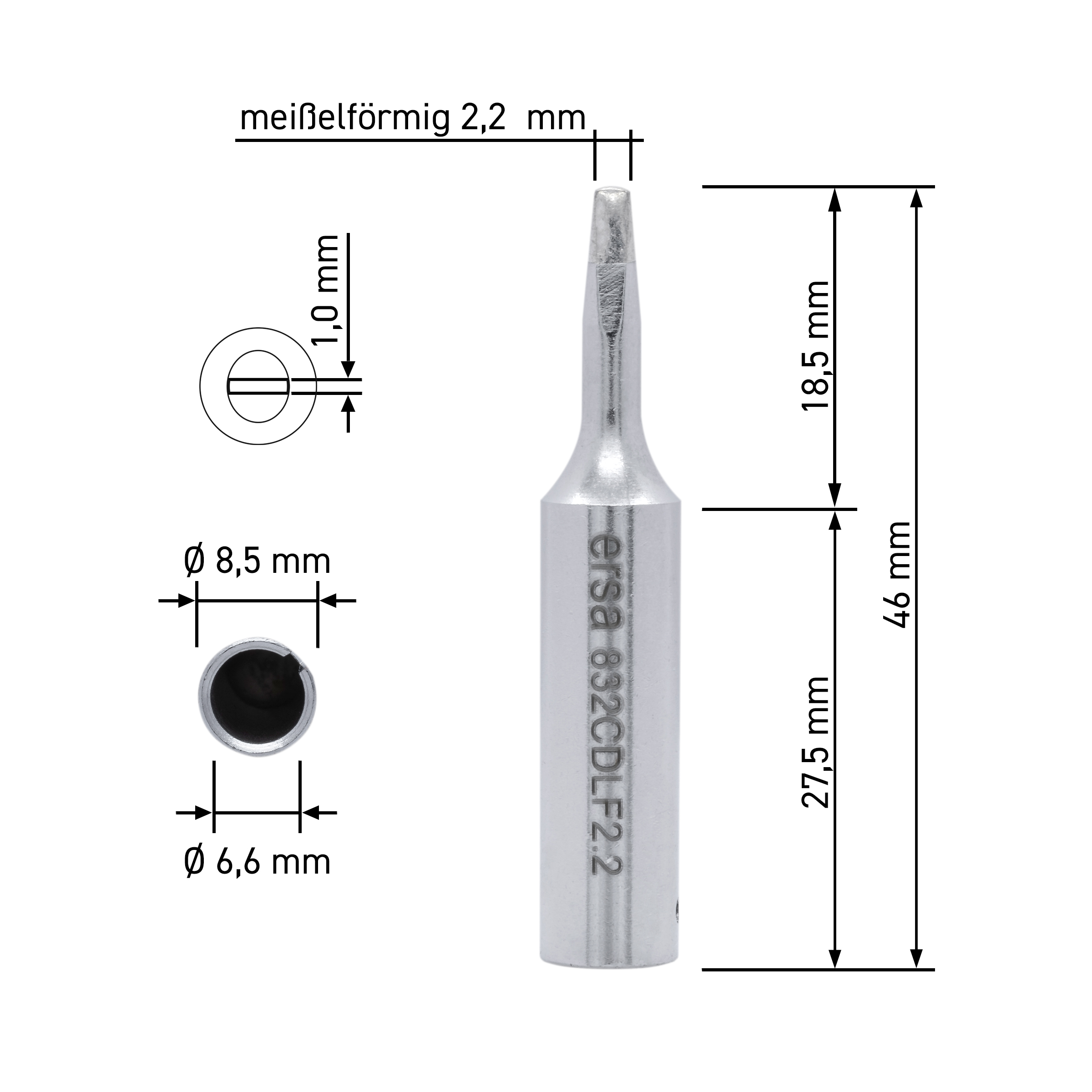

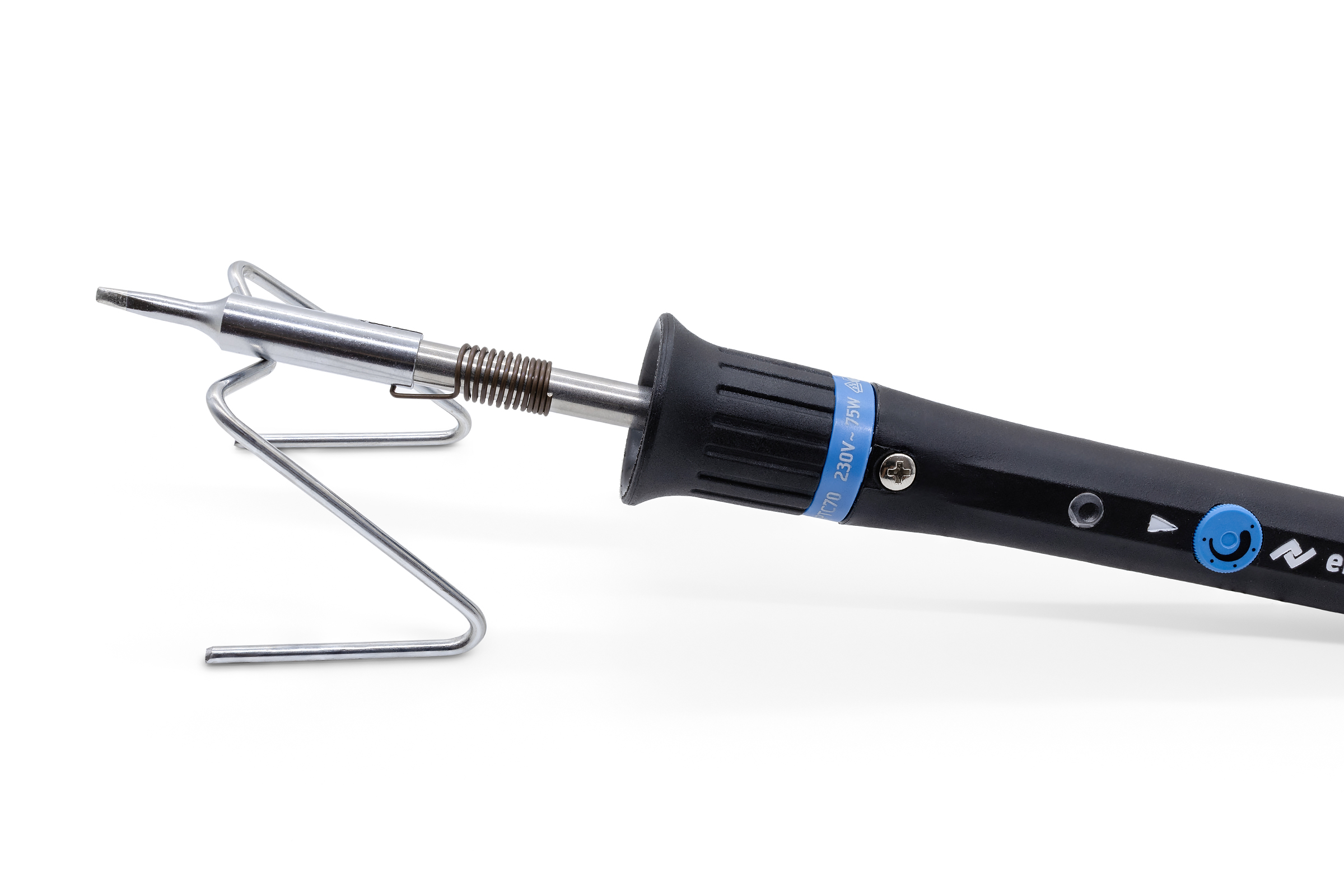

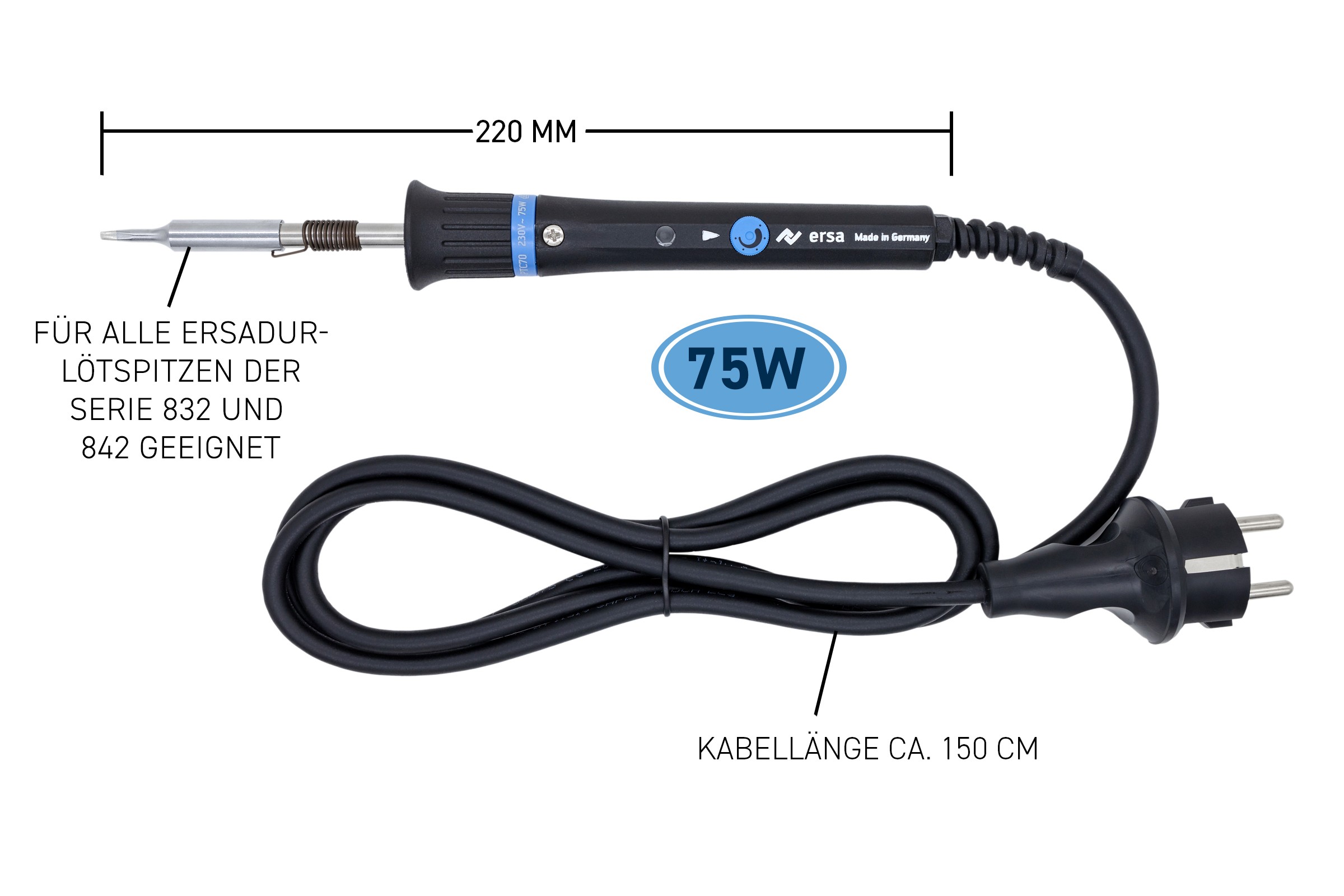

The ERSA PTC70 can be used for both the finest soldering work and applications with a medium heat requirement. The wide range of ERSA DURATIP soldering tips in the 832 and 842 series is available for a variety of applications. The ERSA PTC70 is equipped with a 2.2 mm chisel-shaped soldering tip (0832CDLF) and a tip holder (0A18).
The temperature range is 250-450°C.
| Dimensions | 344 × 70 × 48 mm |
|---|---|
| Heating time | 34.00 sec. |
| Max. solder temperature | 450 °C |
| ROHS compliance | Yes |
| Voltage | 230.00 Volt |
| Weight | 0,34 kg |
| anitstatic design | No |
| max. power | 75 Watt |
| operating type | Mains operation |
| soldering-/desoldering tip | 0832CDLF |
| soldering-tip diameter / width | 2.20 mm |
| soldering-tip form | chisel-shaped |
| surface soldering-tip | Permanent soldering tip |
| type of soldering tip | straight |
