ERSA RT80 electric soldering iron, 80W for RDS80

1 pcs.47,00 €

incl. VAT

zzgl. Versandkosten

Availability: available from stock
Catalog no.: 0890CDJ GTIN: 4003008066401
Express shipping
Business discount
Free hotline

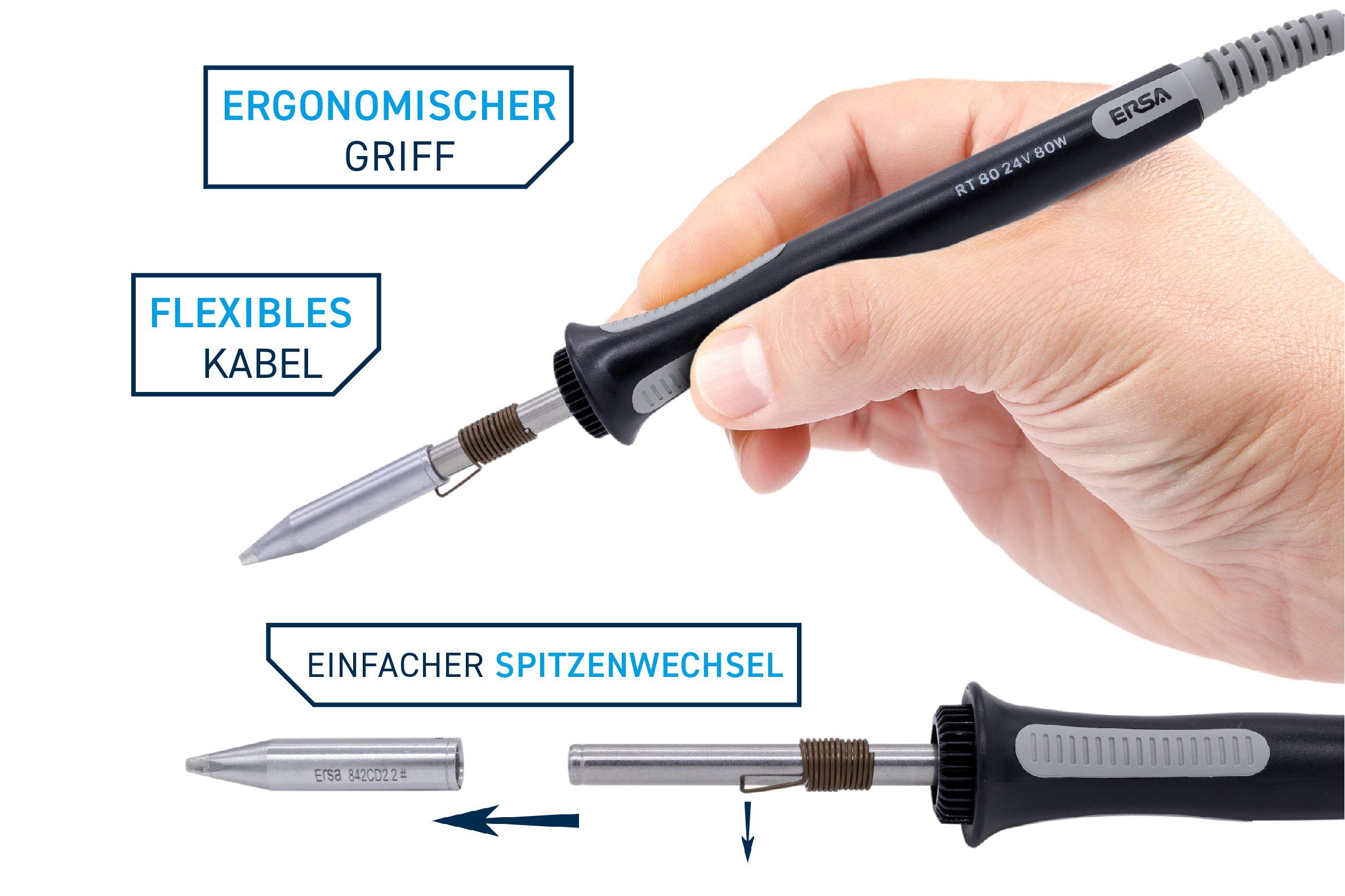

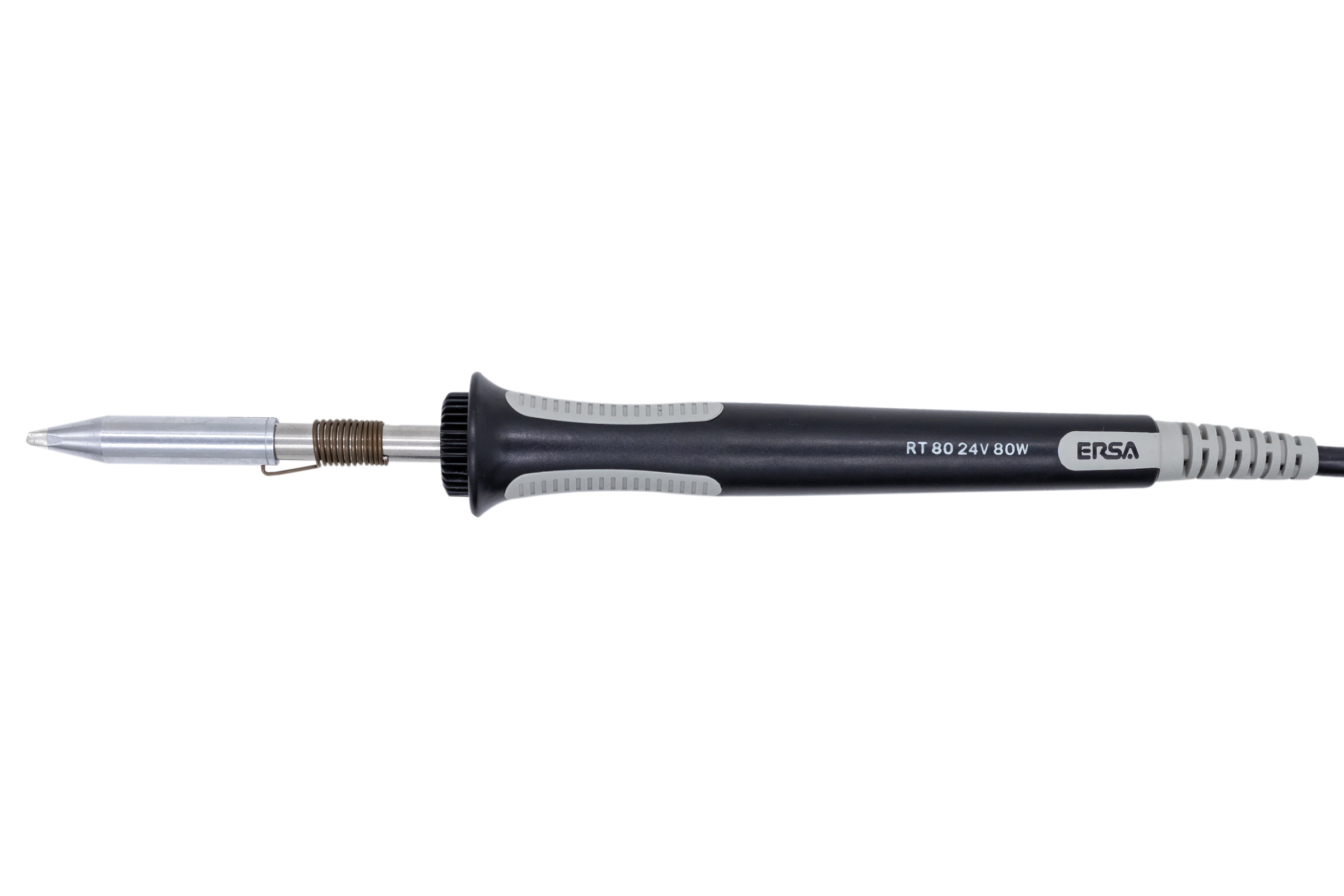

ERSA soldering iron RT80

Ersa soldering iron RT80 80 W for soldering station RDS 80
Technical data
Heating time to 280°C 40s
Max. temperature 450°C
Cable length 1.50 m

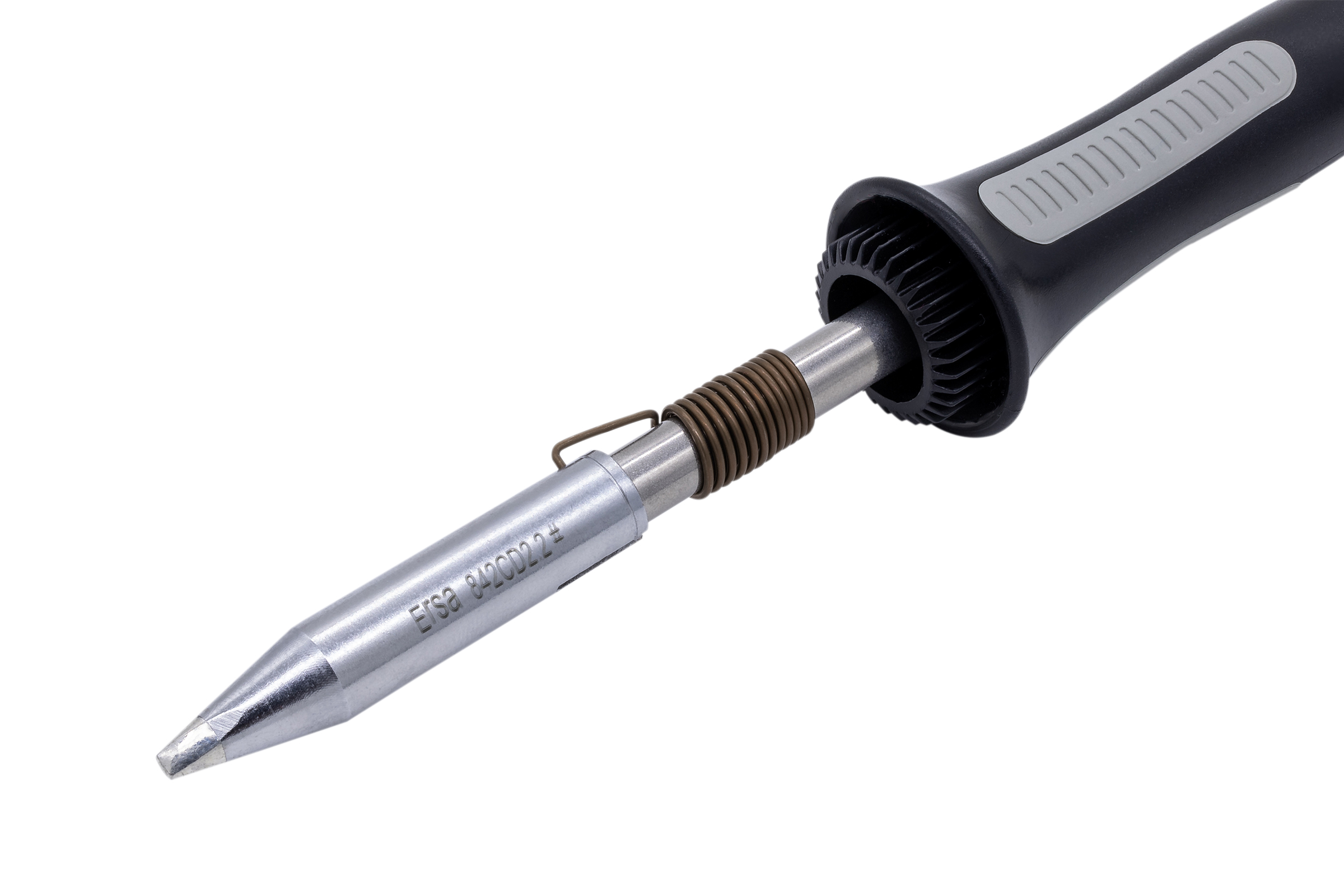

Soldering tip straight chisel-shaped 2.2 mm wide

+++ Now with highly flexible cable +++

Dimensions 343 × 70 × 50 mm
Heating time

40.00 sec.
Max. solder temperature

450 °C
ROHS compliance

Yes
Voltage

24.00 Volt
Weight 0,21 kg
anitstatic design

No
max. power

80 Watt
model

straight
operating type

at station
replacement heater

0890CDJ
soldering-/desoldering tip

0842CD
soldering-tip diameter / width

2.20 mm
soldering-tip form

chisel-shaped
surface soldering-tip

Permanent soldering tip

EU product manager

Ersa GmbH & Co. KG
https://www.kurtzersa.de/
Leonhard Karl Str. 24
DE 97877 Wertheim
