ERSA Multitip 25 fine soldering iron
The ERSA Multitip series is characterized by its wide range of applications, low weight and compact design. The short distance between the soldering tip and the front part of the handle is just as pleasing for the user as the fact that the handle stays comparatively cool during soldering. The Multitip C25 offers 25 W of power and is therefore suitable for the finest soldering joints as well as for medium-sized soldering jobs, such as on distribution strips. The internally heated soldering tips, together with the long-lasting and industry-proven PTC heating elements in the 25 W version, ensure a high level of efficiency and a rapid supply of heat. The cable is 1.35 m long, giving you enough freedom to work well at your workstation,

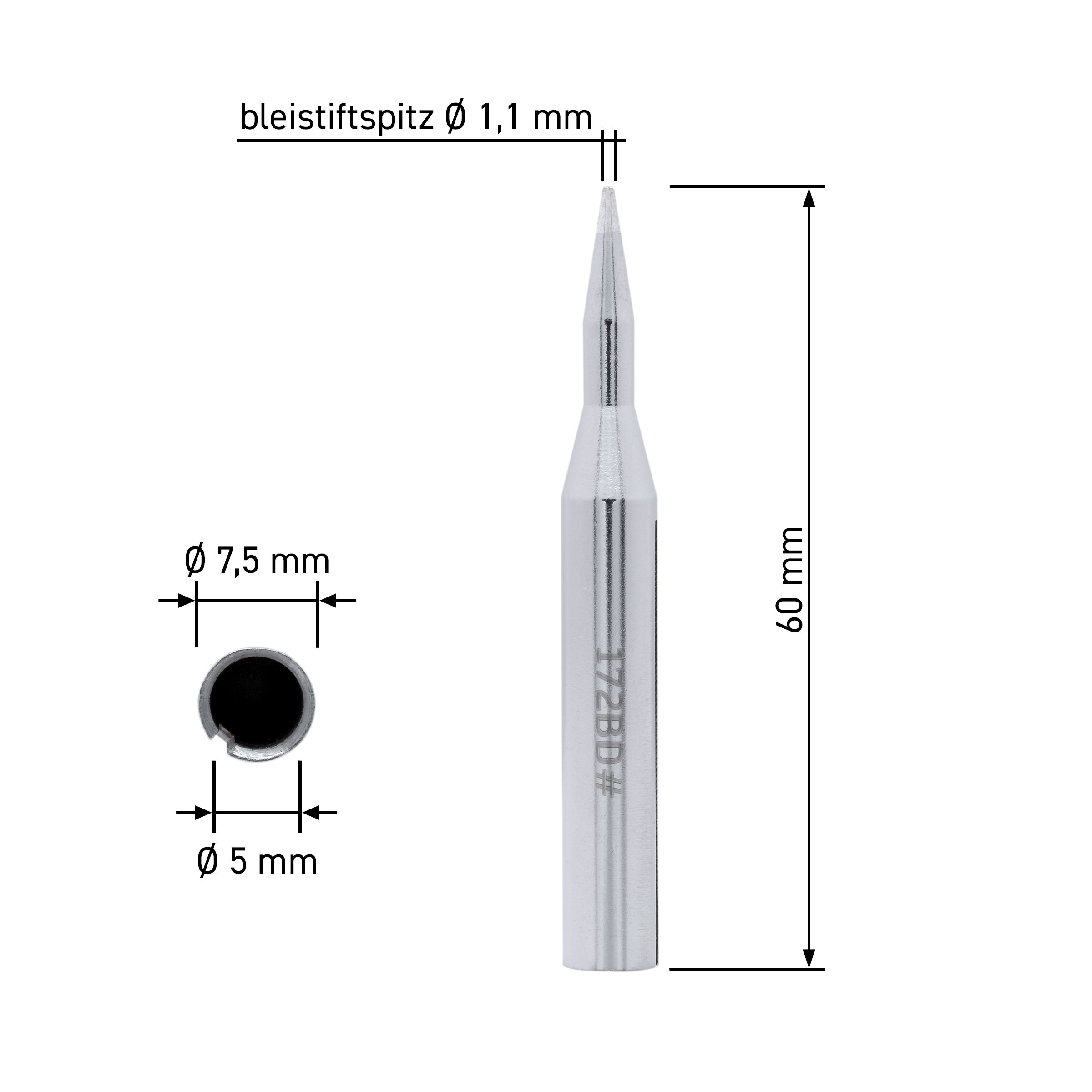

equipped with a 1.1 mm pencil-tip ERSADUR permanent soldering tip (0172BD) and holder (0A18).
| Dimensions | 307 × 70 × 45 mm |
|---|---|
| Heating time | 60.00 sec. |
| Max. solder temperature | 450 °C |
| ROHS compliance | Yes |
| Voltage | 230.00 Volt |
| Weight | 0,29 kg |
| anitstatic design | No |
| model | straight |
| operating type | Mains operation |
| replacement heater | E092100 |
| soldering-/desoldering tip | 0172BD |
| soldering-tip diameter / width | 1.10 mm |
| soldering-tip form | pencil point |
| surface soldering-tip | Permanent soldering tip |
