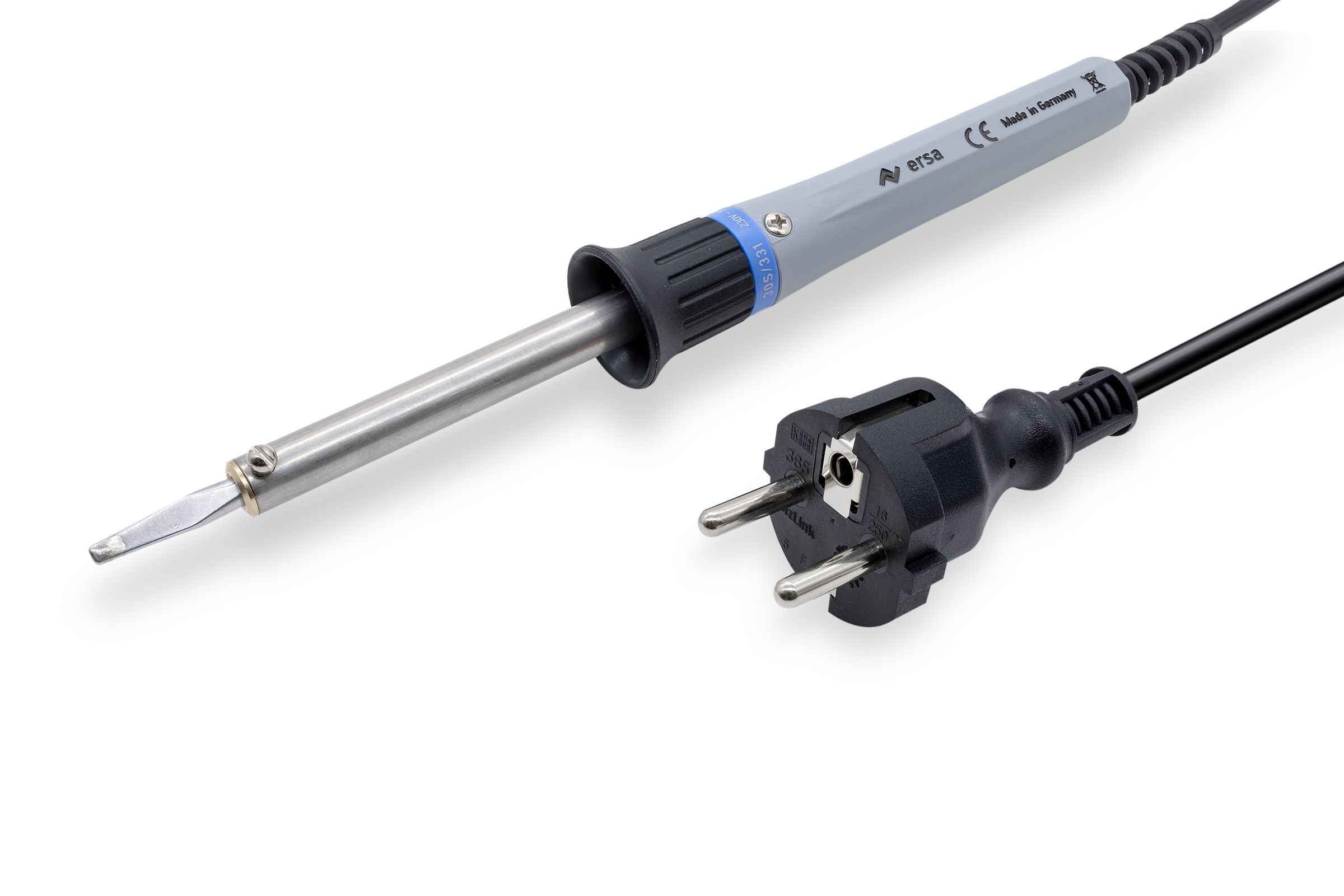

ERSA Multitip C 15 Precision Soldering Iron
The ERSA Multitip series is characterized by its wide range of applications, low weight and compact design. The short distance between the soldering tip and the front part of the handle is just as pleasing for the user as the fact that the handle stays comparatively cool during soldering. The Multitip C 15 i offers you 15 W of power and is therefore suitable for the finest soldering joints as well as for medium-sized soldering jobs, such as on distribution strips. The internally heated soldering tips, together with the long-lasting and industry-proven PTC heating elements in the 15 W version, ensure a high level of efficiency and a rapid heat supply.
It comes with a 1.1 mm pencil-tip ERSADUR permanent soldering tip (0162BD) and a rest (0A18).
| Dimensions | 340 × 70 × 45 mm |
|---|---|
| Heating time | 60.00 sec. |
| Max. solder temperature | 350 °C |
| ROHS compliance | Yes |
| Voltage | 230.00 Volt |
| Weight | 0,28 kg |
| anitstatic design | No |
| max. power | 15 Watt |
| model | straight |
| operating type | Mains operation |
| replacement heater | E091100 |
| soldering-/desoldering tip | 0162BD |
| soldering-tip diameter / width | 1.10 mm |
| soldering-tip form | pencil point |
| surface soldering-tip | Permanent soldering tip |
