ITEM NO. 0032BD
ERSA ERSADUR soldering tip for ERSA 30 S, straight, pencil-shaped, 1.1 mm
Express shipping
Business discount
Free hotline
Description

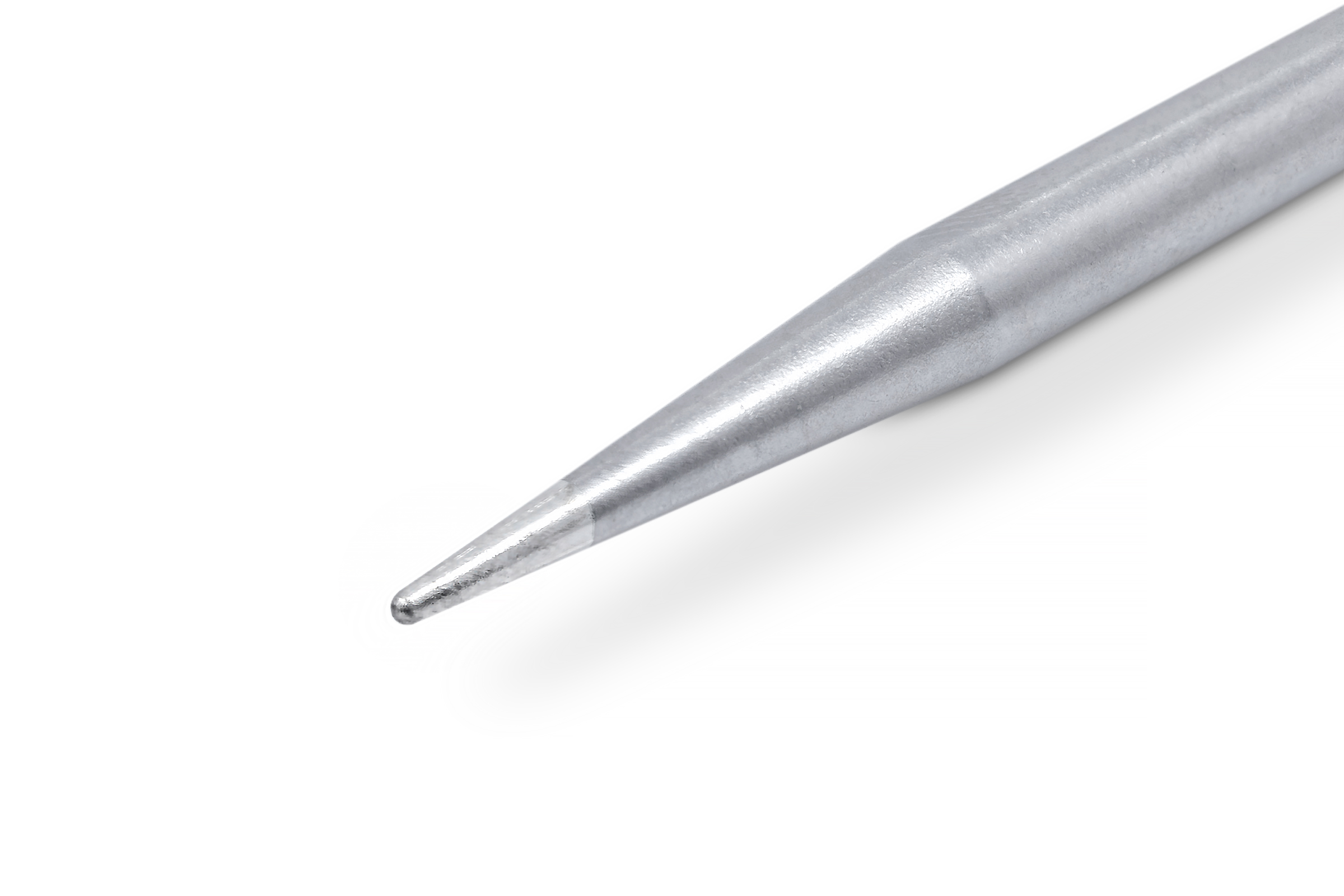

ERSA soldering tip, straight, pencil tip, 1.1 mm diameter, with ERSADUR coating for the ERSA 30 S soldering iron.
ERSADUR soldering tips are manufactured to the highest quality and are designed for continuous operation. In a special galvanic process, they are plated with an iron layer and protected from corrosion and oxidation by an additional chrome layer. Perfect heat transfer protects the soldering iron’s heating element from overheating and premature wear.
technical data
| Dimensions | 115 × 85 × 4 mm |
|---|---|
| ROHS compliance | Yes |
| Weight | 0,01 kg |

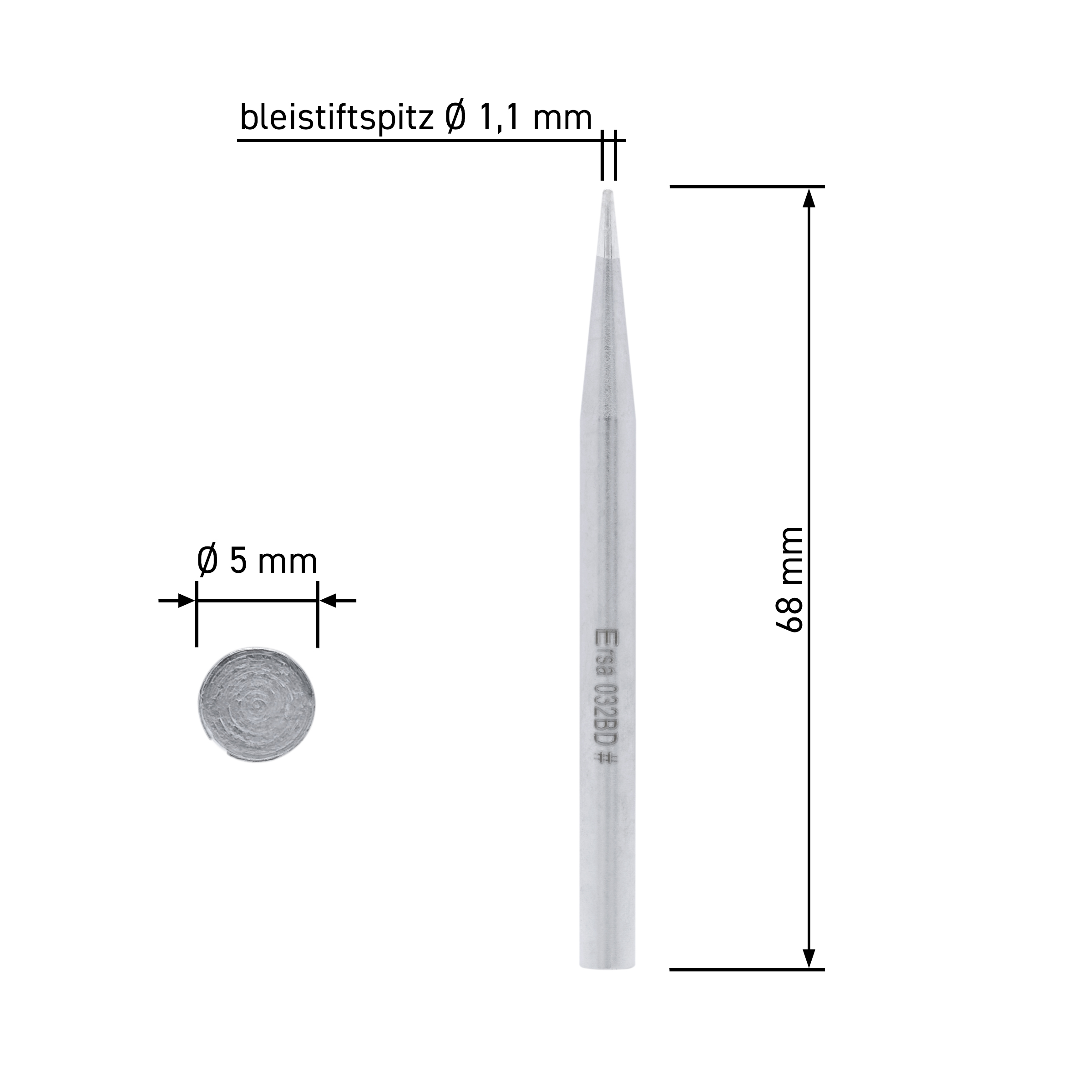

| complete length | 68 mm |
| model | straight |
| outer diameter shaft | 5.00 mm |
| soldering-tip diameter / width | 1.10 mm |
| soldering-tip form | pencil point |
| surface soldering-tip | Permanent soldering tip |
| tip series | 032 |
EU product manager
Ersa GmbH & Co. KG
https://www.kurtzersa.de/
Leonhard Karl Str. 24
DE 97877 Wertheim
