ERSA i-TOOL PICO MK2 80W soldering iron

1 pcs.117,81 €

incl. VAT

zzgl. Versandkosten

Availability: only few available
Catalog no.: 0135CDK GTIN: 4003008153606
Express shipping
Business discount
Free hotline

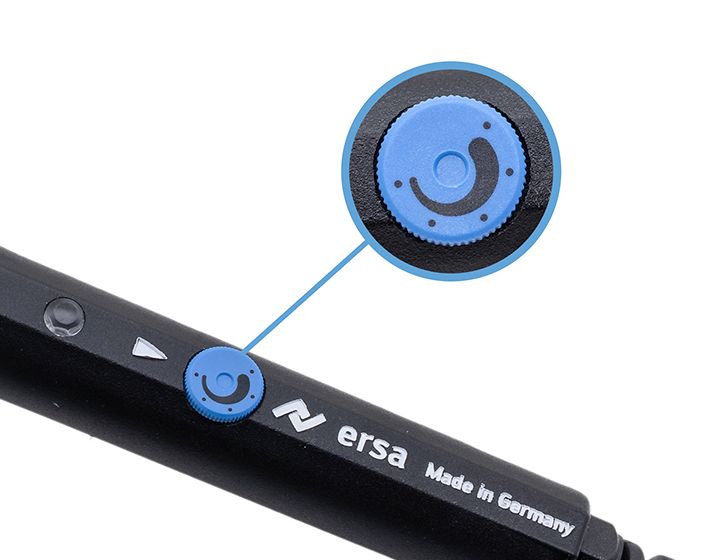

ERSA i-Tool PICO MK2 soldering iron

i-Tool PICO MK2 soldering iron for i-CON PICO MK2 soldering station
This ultra-light and powerful soldering iron features the same outstanding heating technology as its larger brothers in the Ersa i-Tool family.
A wide range of cost-effective 142 series permanent soldering tips are available for all of them.
The soldering iron has a maximum of 80 watts and comes with a 1.6 mm chisel-shaped soldering tip.

The integrated Tip’N’Turn bayonet lock ensures quick and easy tip changes and also provides a 20-25% power improvement compared to screw connections.

Dimensions 340 × 72 × 46 mm
Heating time

9.00 sec.
Max. solder temperature

450 °C
ROHS compliance

Yes
Voltage

16.50 Volt
Weight 0,14 kg
anitstatic design

No
max. power

80 Watt
operating type

at station
replacement heater

014100J
soldering-/desoldering tip

0142CDLF16
soldering-tip diameter / width

1.60 mm
soldering-tip form

chisel-shaped
surface soldering-tip

Permanent soldering tip
tip series

142
type of soldering tip

straight
