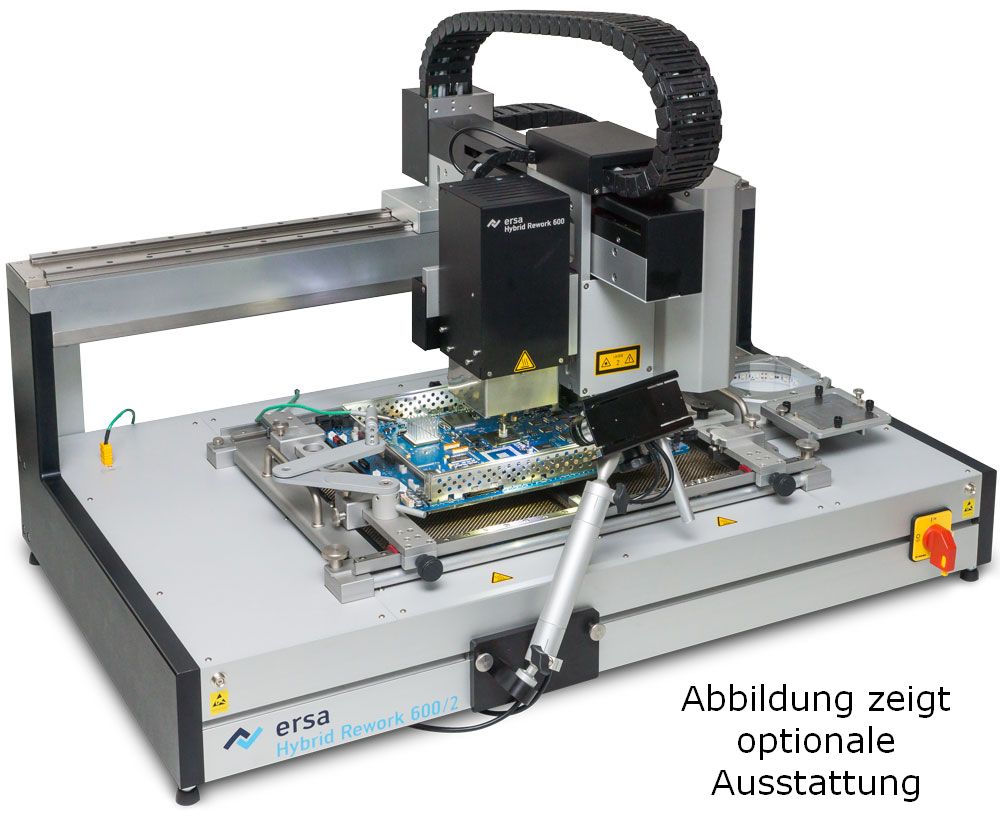

Ersa HR 600 Hybrid Rework System with PCB holder XL 535 x 300 (+x) mm

? 3200 W heating power
-2400 W bottom radiator / 3 zones at 800 W / 380 x 250 mm
– 800 W top heater / 2 zones at 400 W / 60 x 60 mm
? 230V AC, single-phase, 50 Hz, 16A
? Compressed air 6 bar, 1/4 inch quick coupling
? 1 digital contactless IR sensor built in
? 2 type K thermocouple inputs
? Component size 1 x 1 mm to 50 x 50 mm
? Placement accuracy up to +/- 25 ?m
? Max. PCB size -XL: 535 x 300 mm (+x) / 21″ x 11.8″
? 1 center support rail with 2 pins
? 1 Accu-TC sensor
? Air baffle 40 x 40 mm
? Air baffle 30 x 30 mm
? Air baffle 20 x 20 mm
? 1 thermocouple holder (for HR600)
? Silicone suction cup Ø 5 mm
? Placement nozzle Ø 10 mm (magnetic attachment)
? Placement nozzle Ø 4 mm (magnetic attachment)
? Top placement camera 1.3 MP, USB 2.0, LED lighting
? Component camera bottom 1.3 MP, USB 2.0, LED lighting
? USB 2.0 interface
? Ersa HRSoft operating software
