ITEM NO. 0612WDLF

ERSA ERSADUR soldering tip, straight, slanted, 4.0 mm

1 pcs.29,46 €

incl. VAT

plus shipping costs

Availability: available from stock
Catalog no.: 0612WDLF GTIN: 4003008083705
Express shipping
Business discount
Free hotline

Description

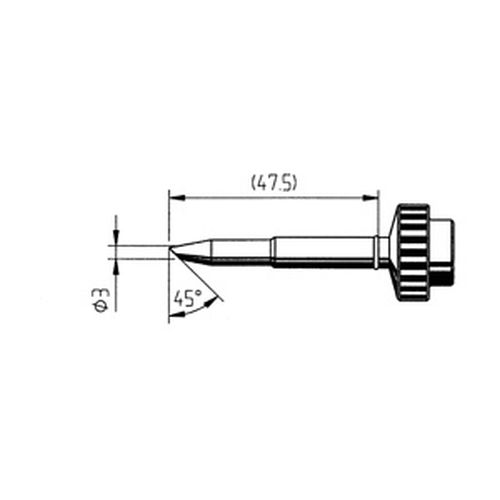

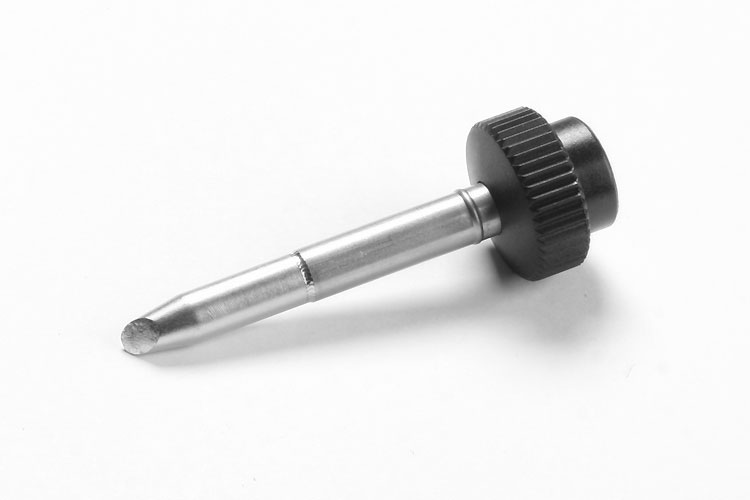

Long-life soldering tip, straight, tapered at a 45° angle, 4.0 mm wide, with ERSADUR-LF coating (lead-free soldering) with increased service life.

Suitable for the soldering stations DIGITAL 2000A, DIGITAL 60A, Micro-Con 60iA and CPS60.10 and the soldering iron Tech-Tool.

ERSADUR soldering tips are manufactured to a high standard and designed for continuous operation. They are electroplated with an iron layer in a special process and protected against corrosion and oxidation by an additional chrome layer. Perfect heat transfer protects the soldering iron’s heating element from overheating and premature wear.

technical data

Dimensions 61 × 21 × 21 mm
ROHS compliance

Yes

Weight 0,01 kg
complete length

67 mm

model

straight

soldering-tip diameter / width

4.00 mm

soldering-tip form

beveled

surface soldering-tip

Permanent soldering tip

tip series

612

EU product manager

Ersa GmbH & Co. KG
https://www.kurtzersa.de/
Leonhard Karl Str. 24
DE 97877 Wertheim
