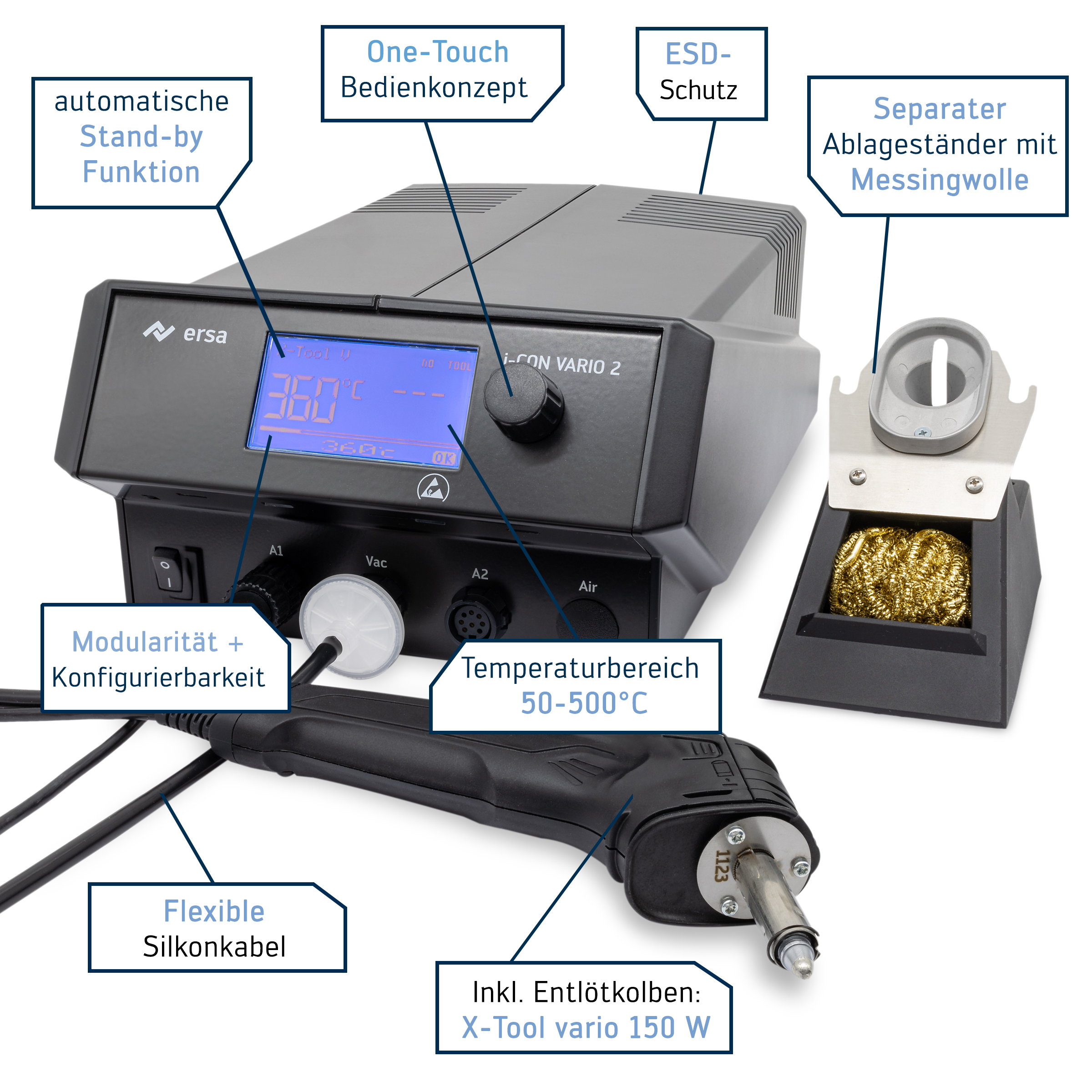

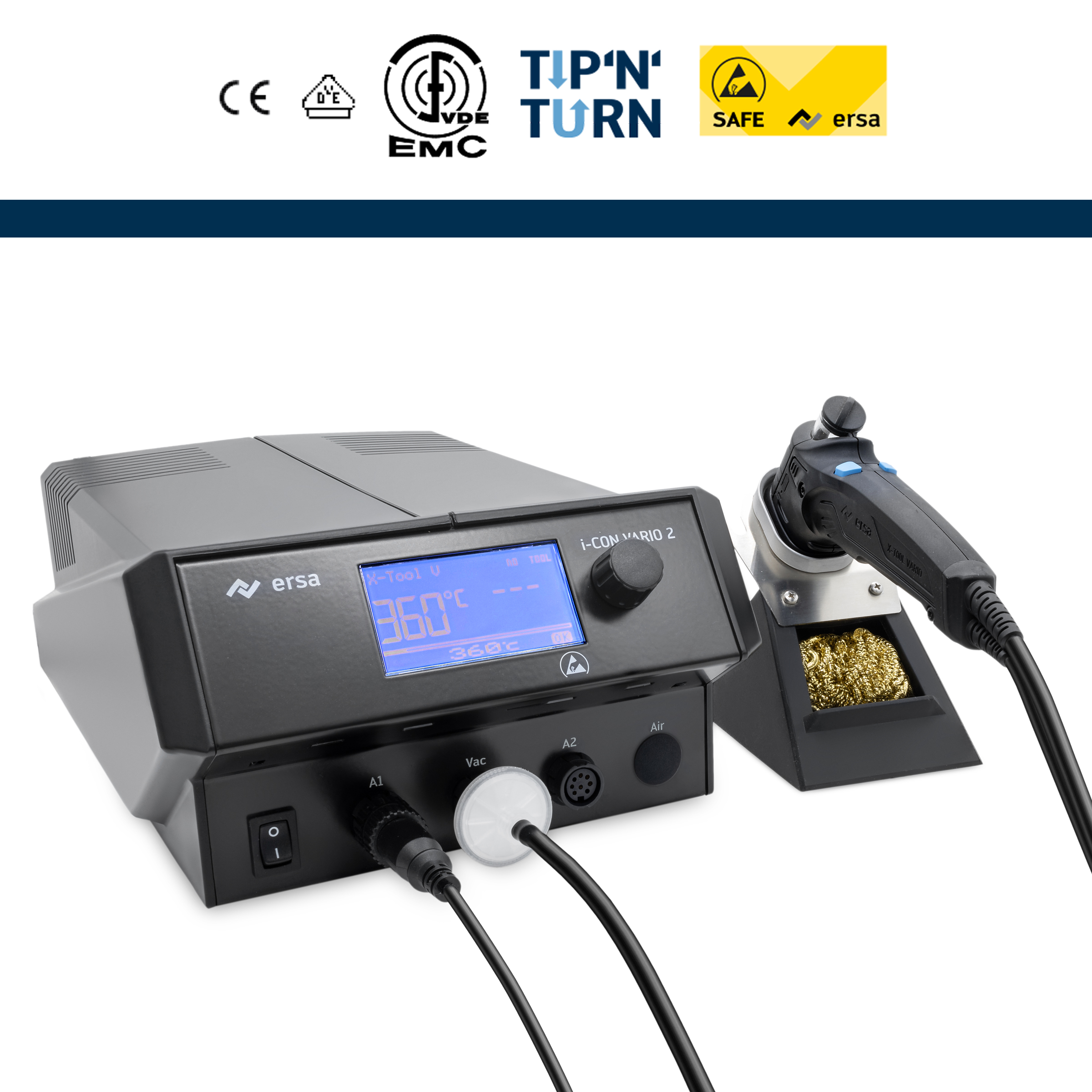

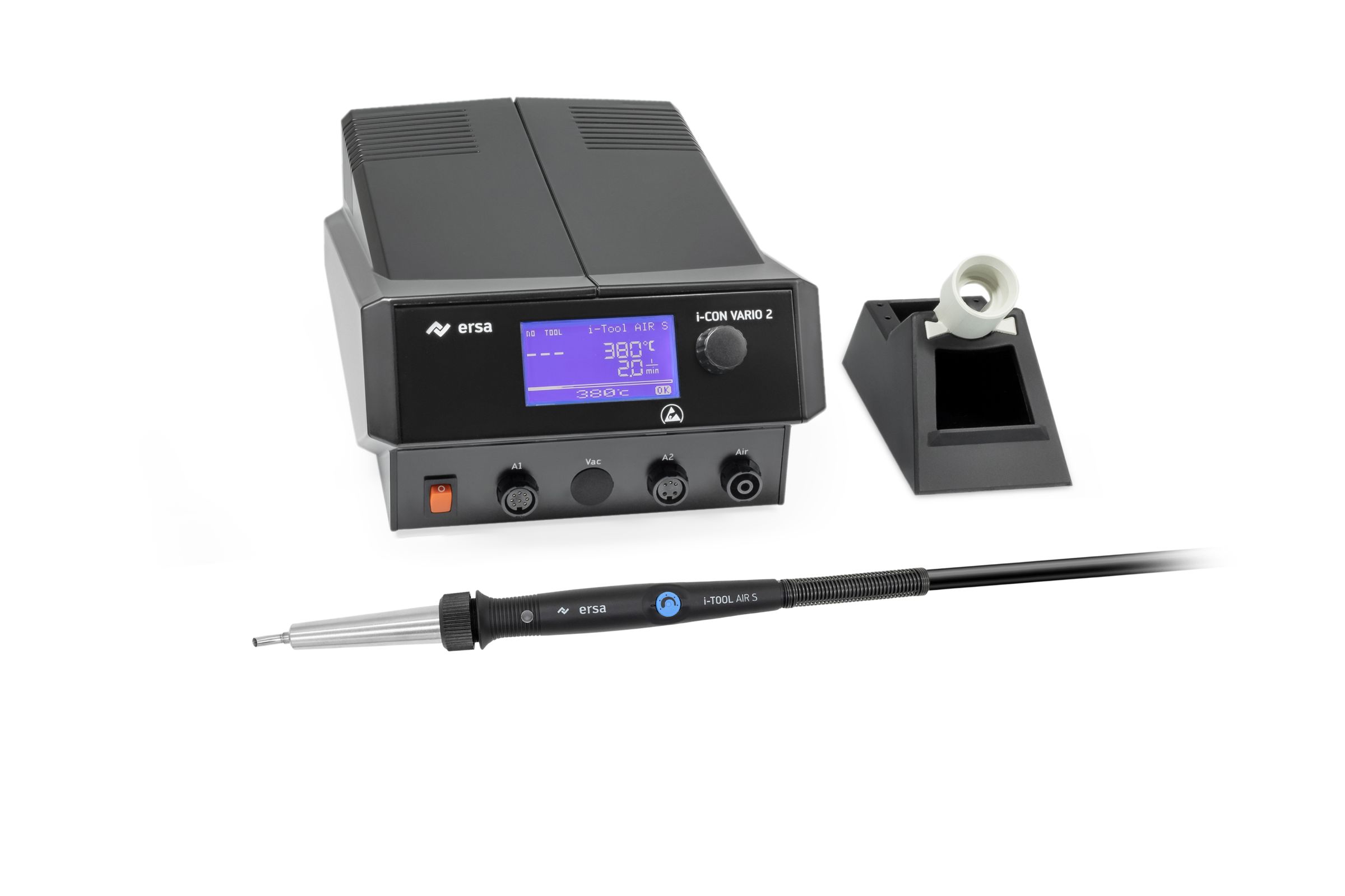

Ersa i-CON VARIO 2 MK2, ESD 2-channel soldering and desoldering station with vacuum pump, X-TOOLvario 150W, antistatic

The i-CON VARIO 2 MK2 desoldering station meets the highest demands for professional desoldering. 2 ERSA tools can be operated simultaneously. Vacuum and contact soldering. (No hot air with this model)

The X-Tool vario (150 W) is available to the user at this station for desoldering wired components.

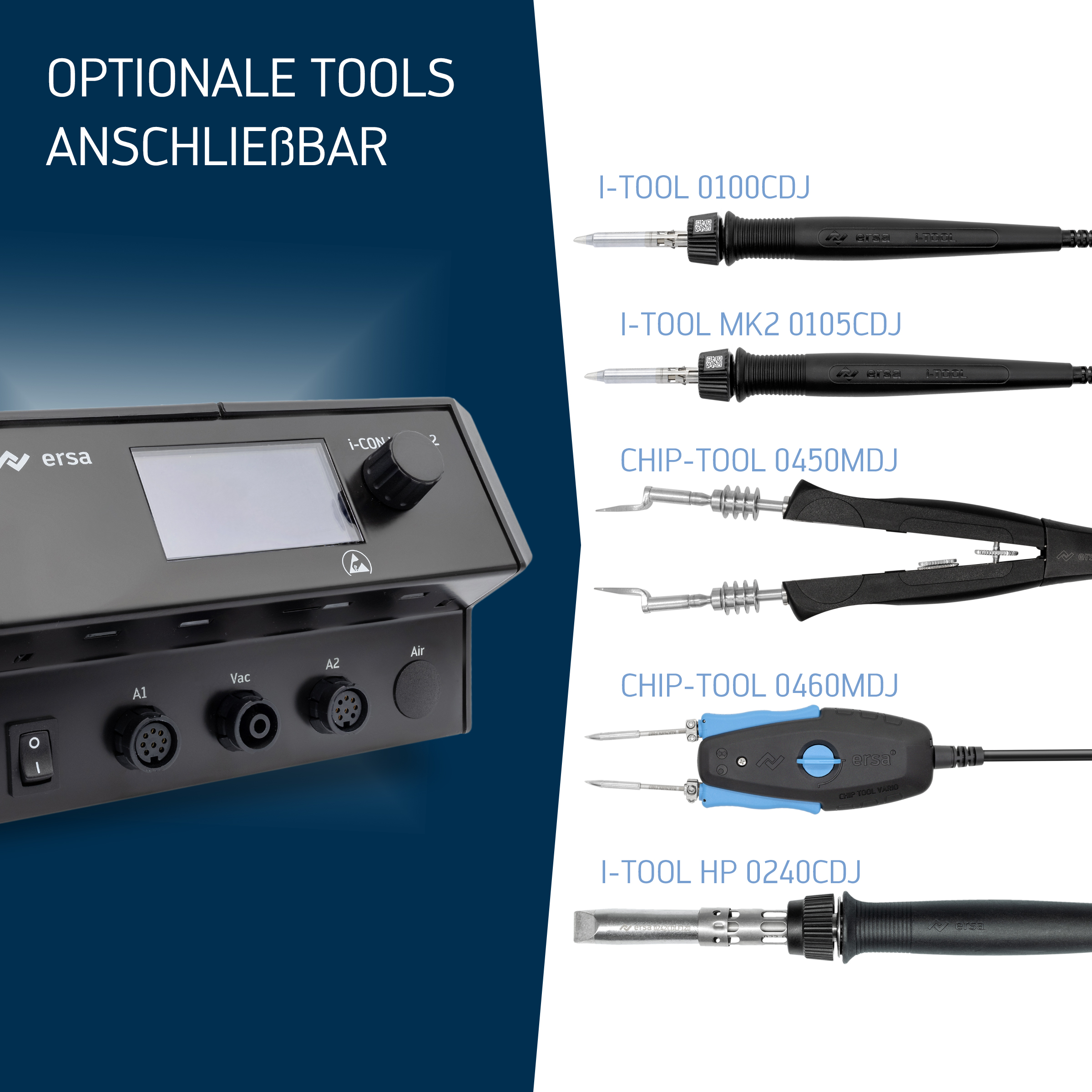

All soldering tools are equipped with an acceleration sensor that can be used to set an automatic standby switch (150-300°C) or a hibernation function (room temperature). The tools heat up in seconds by moving back into the operating mode. In addition to the X-TOOL Vario desoldering iron, other ERSA soldering tools can be used as an option.
All functions are integrated into a central supply unit with very simple i-Op operation and a clear display. The station also offers interfaces for automatically switching on Ersa solder fume extraction units (via a standby signal) and a control option for ERSA infrared preheaters, as well as a USB port. The station or tools can be quickly and securely updated via an optional microSD memory card, making it ready for future tools. The station is ideally suited for use in ESD protected areas.
The current firmware versions can be viewed and downloaded at any time at http://www.ersa.de/vario.

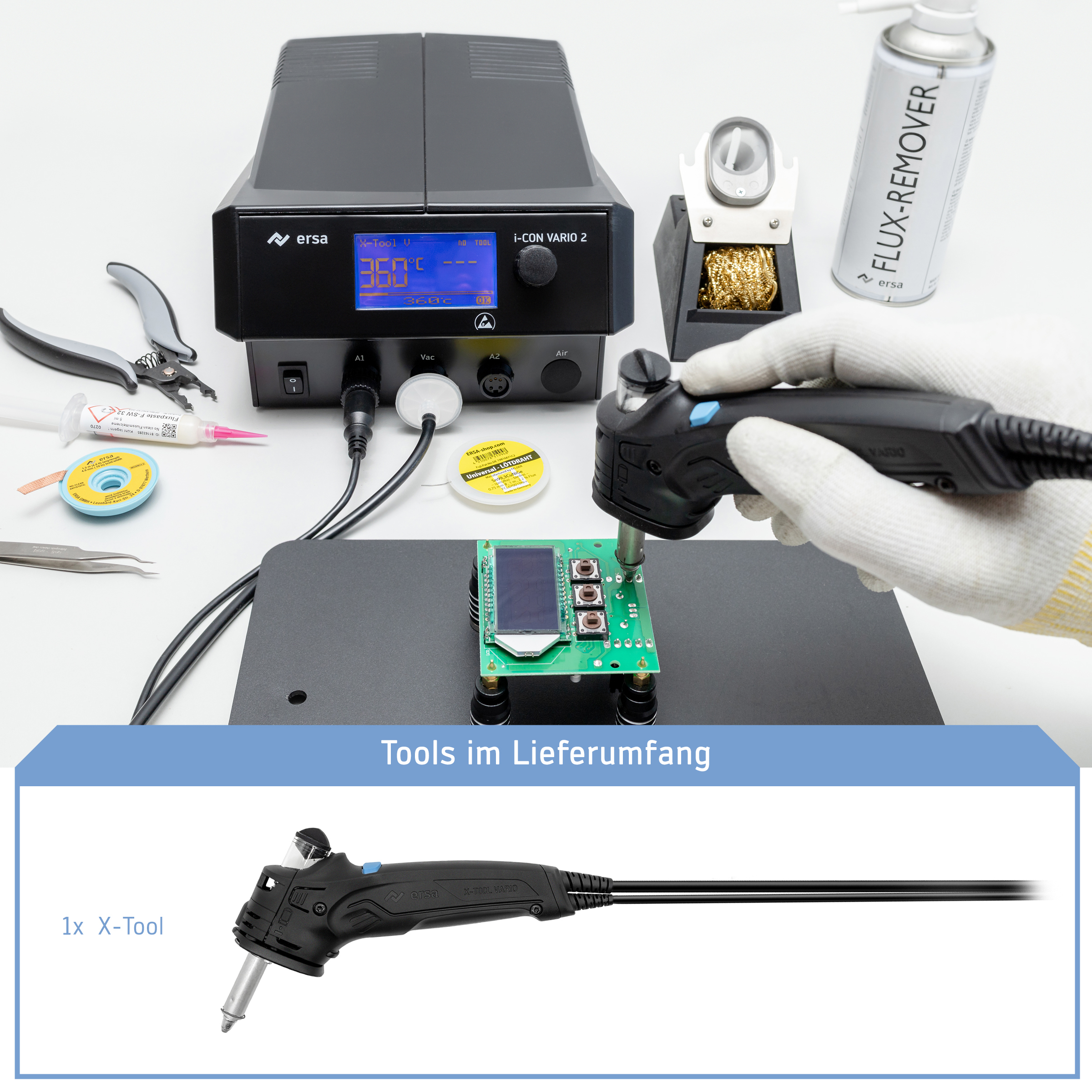

0ICV2035X Control station i-CON VARIO2 200W, antistatic with 230 V mains cable
0740EDJ Desoldering iron X-TOOL VARIO, 24V, 150W, antistatic with desoldering tip 0742ED1225H 1.2 mm internal,
0A56 ERSA stand for desoldering iron X-Tool Vario

Technical data:

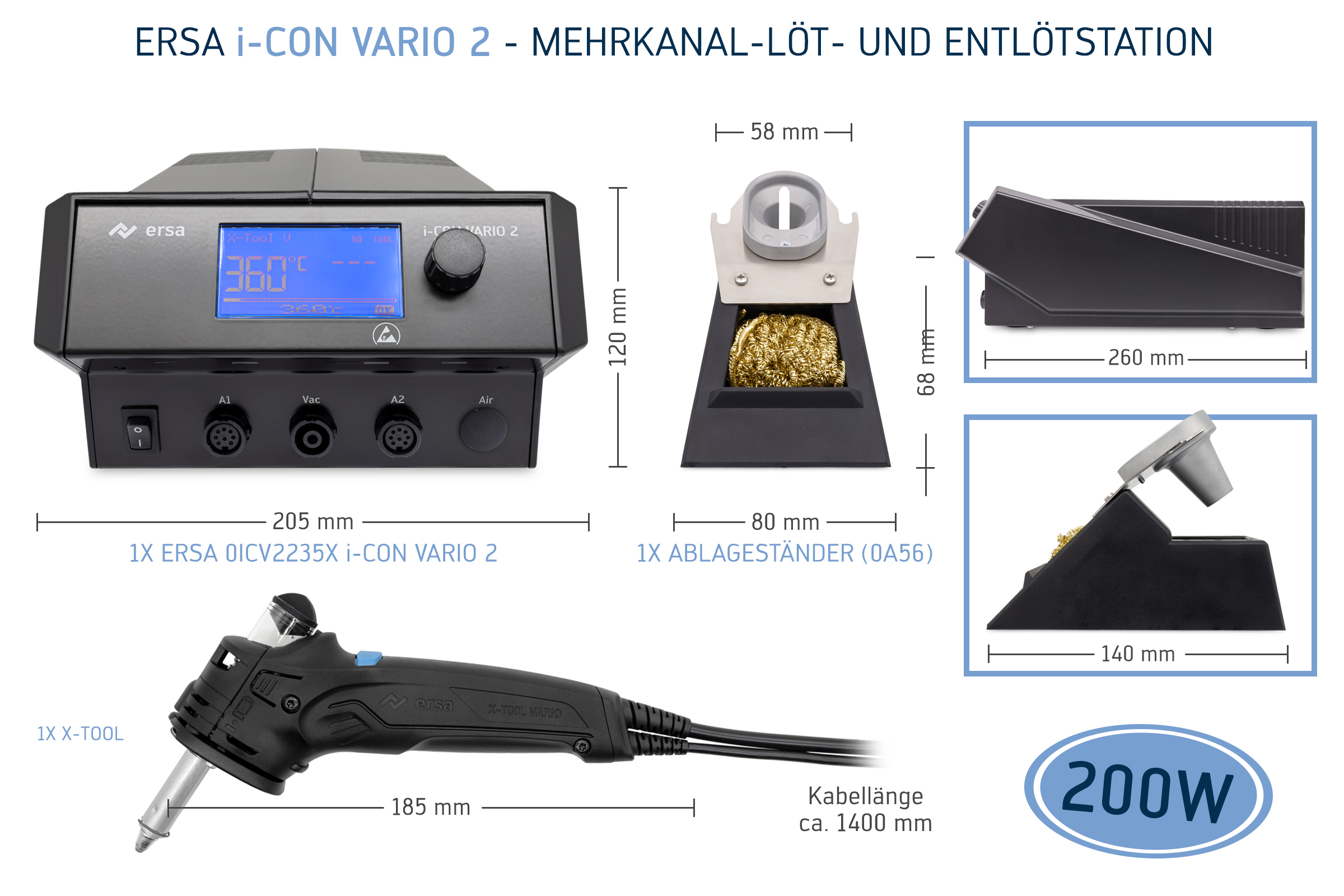

VARIO 2 control station, max. 200W, 180mm x 280mm x 115mm, approx. 6kg
input 230V ~, output 24V~
max. short-term power 360W,
vacuum max. 700mbar,
temperature range: 150 – 450°C (50 – 550°C i-Tool AIR S)
ohmic resistance between soldering tip and ground <2 Ohm
Front connections: Power switch, 1 i-OP pressure/rotary button for LCD display menu control and 2 tool connections, simultaneously with vacuum and pressure connection, microSD slot,

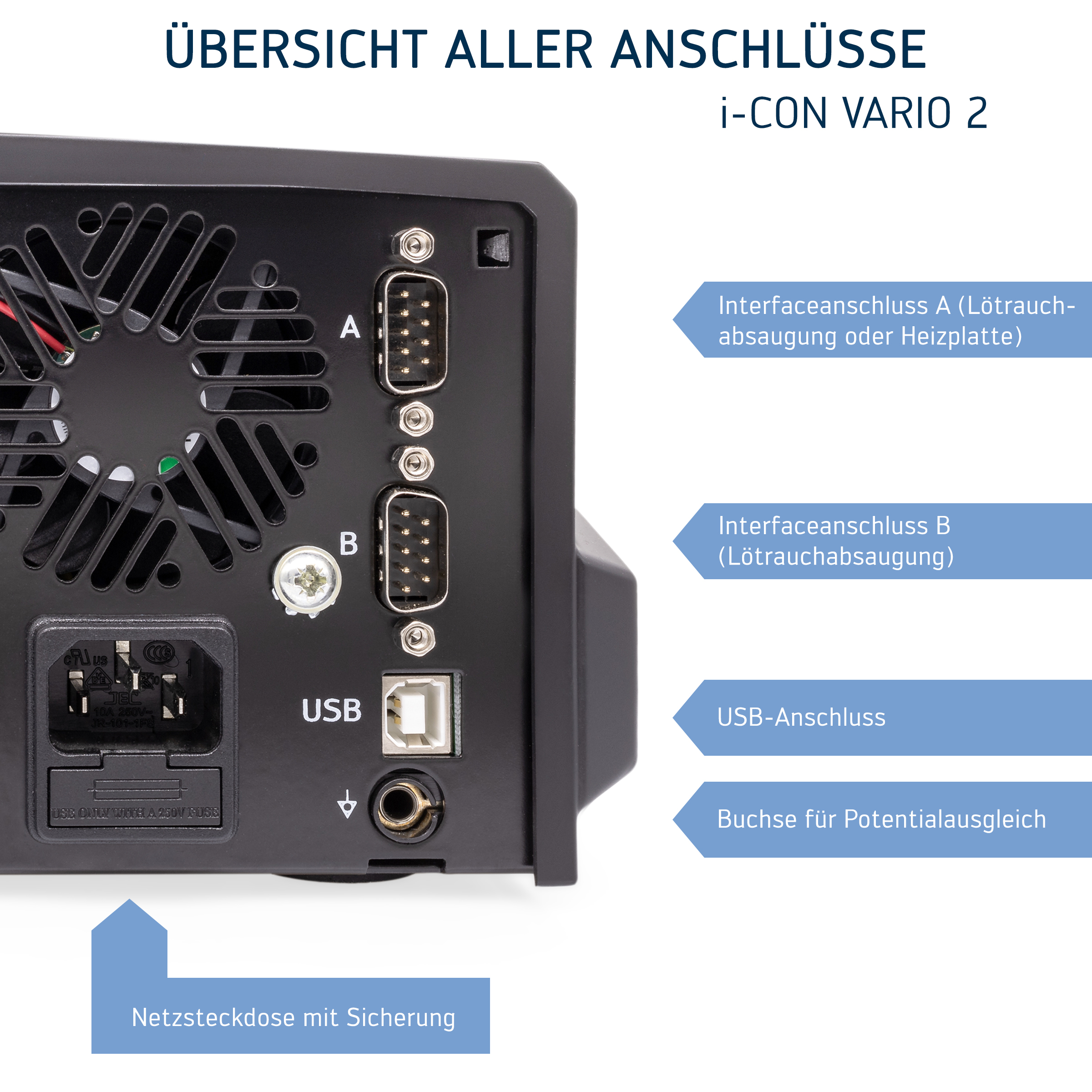

Rear connections: 230V~ IEC connector, 2x RS232, 1x USB, 1 air inlet with filter, 4mm potential equalization socket,
antistatic version
– standby power consumption approx. 25W

X-Tool Vario:
One of the most powerful desoldering irons with 150 W heating power, very easy to change the desoldering tips and easy to clean the residual solder container.

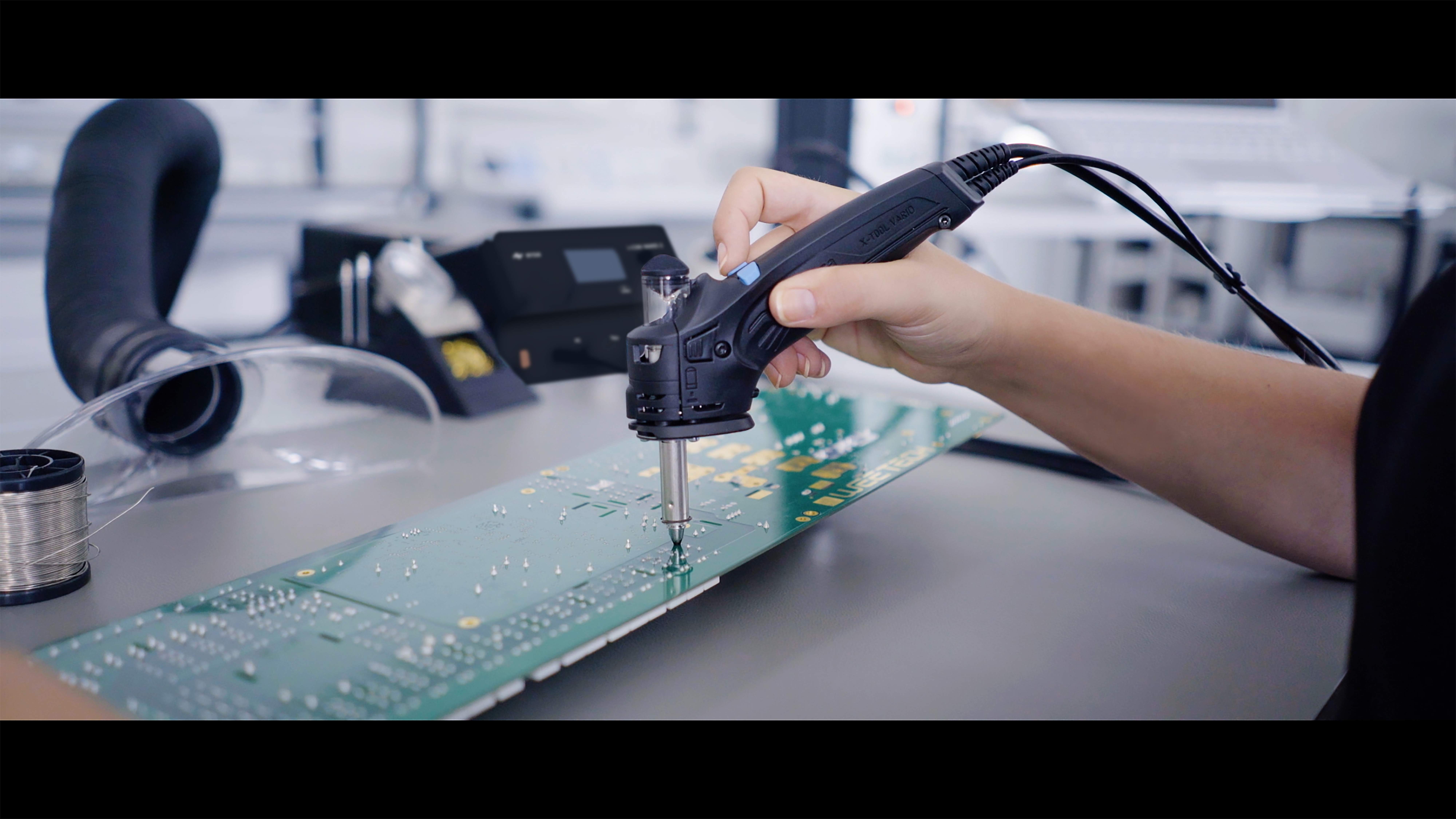

Designed for the most difficult desoldering jobs of conventional components on massive printed circuit boards. As desoldering tips, please use types of the 0742ED series….

Unit is supplied without integrated hot air module!
The Ersa i-TOOL Air cannot be used with this station!
